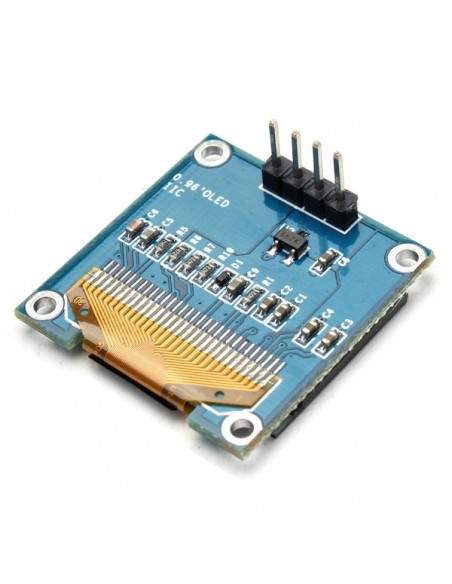

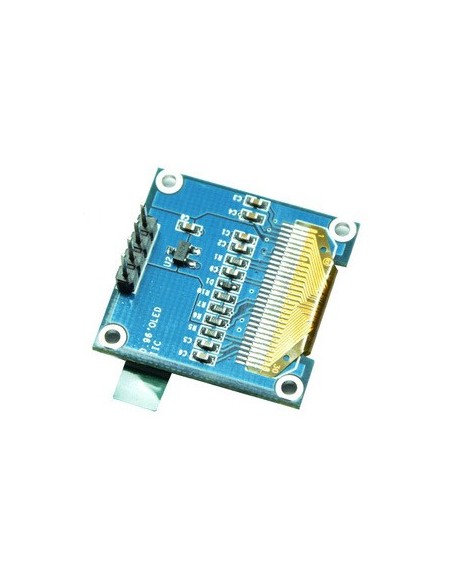

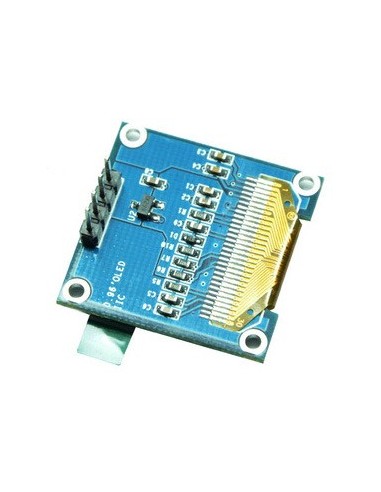

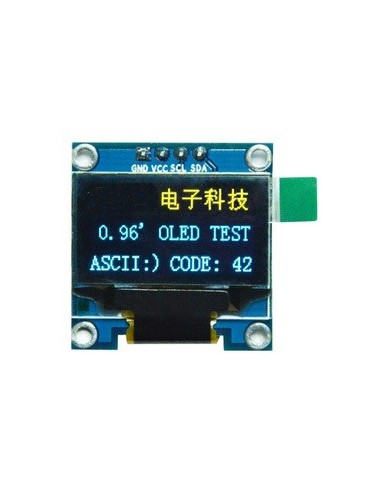

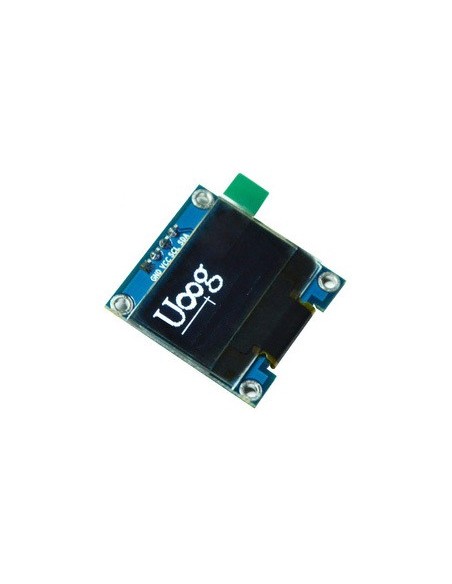

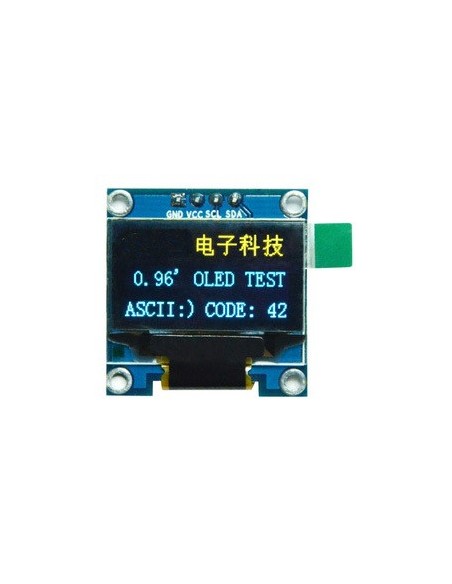

0.96" 128X64 OLED LCD Display (I2C)

Characteristic

• High resolution: 128X64 (same as 12864LCD resolution, but the unit area of the OLED screen is more pixels)
• Ultra wide viewing angle: greater than 160 °
• Ultra low power consumption: normal display 0.06W (far below the TFT display)
• Wide power supply range: DC 3V-5V (without any changes, directly compatible with commonly used 3.3V and 5V power supply system)
• industrial grade: operating temperature range of -30 ~70 degree

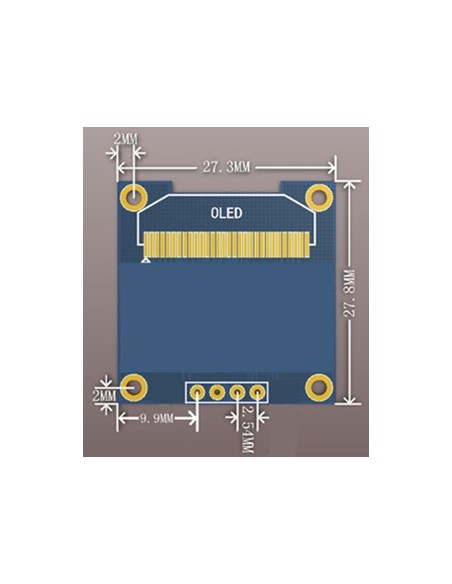

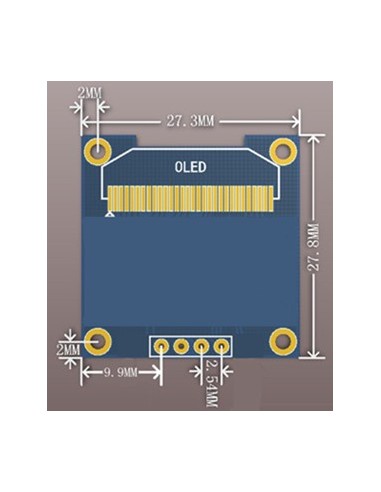

• ultra small size: (L) 27.8MM* (W) 27.3MM* (4.3MM thick)
• support multiple modes of operation: IIC
• compatible with 3.3V and 5V control chip I/O level (without any setup, directly compatible)
• Drive chip: SSD1306

Pin description

• GND: power ground
• VCC: 3.3V or 5V power supply
• SCL: IIC clock line
• SDA: IIC data line

Note

• IIC communication mode, occupy pins minimum, with ACK response, address selection, the most complete function, easy to use
