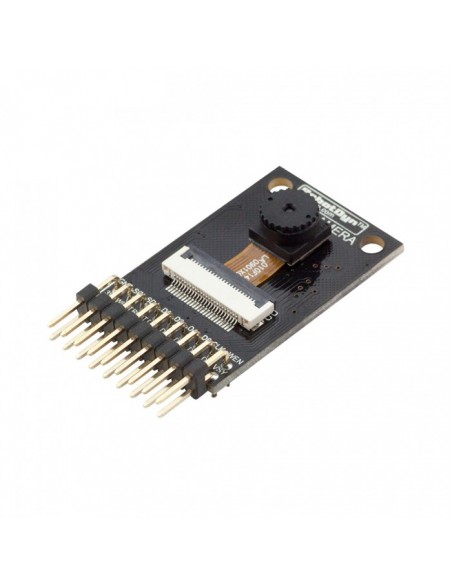

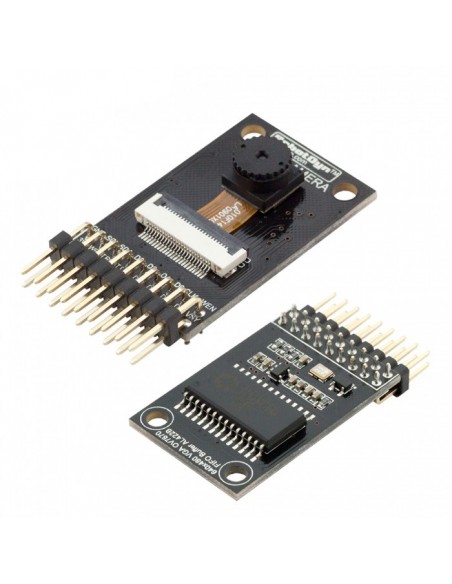

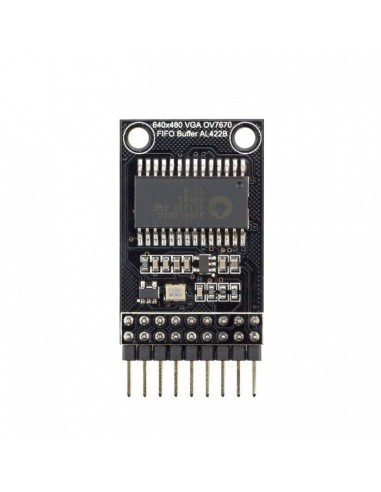

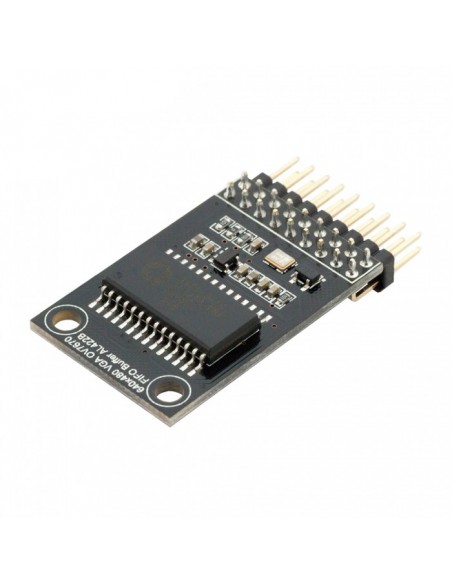

VGA Camera Module OV7670, 640x480, FIFO Buffer AL422B, I2C

OV7670 VGA Camera + FIFO Buffer AL422B, based on popular OV7670 image sensor. With the onboard 384KB FIFO chip AL422B the camera module can buffer a entire VGA frame at 30fps frame rate, and it enables the low speed microcontroller boards to take photos.

The camera module is powered from a single +3.3V power supply.

Technical characteristics VGA Camera Module OV7670, 640x480, FIFO Buffer AL422B, I2C

• Sensor Array 640 x 480
• IO Voltage 2.5V to 3.0V
• FIFO Buffer AL422B, 384KB
• Operating Power 60mW/15fpsVGAYUV
• Sleeping Mode <20 uA
• Operating Temperature -30 to 70 deg C
• Output Format YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit)
• Max. Frame Rate 30fps VGA
• Sensitivity 1.3V / (Lux-sec)
• Signal to Noise Ratio 46 dB
• DynamicRange 52 dB
• PCB size 23.50 x 36.50 mm

• OV7670 with Arduino
