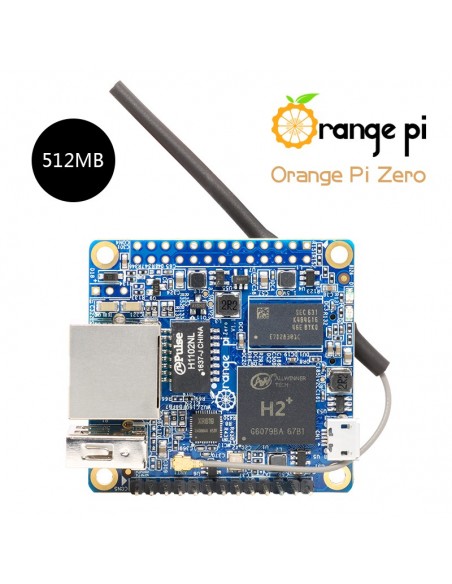

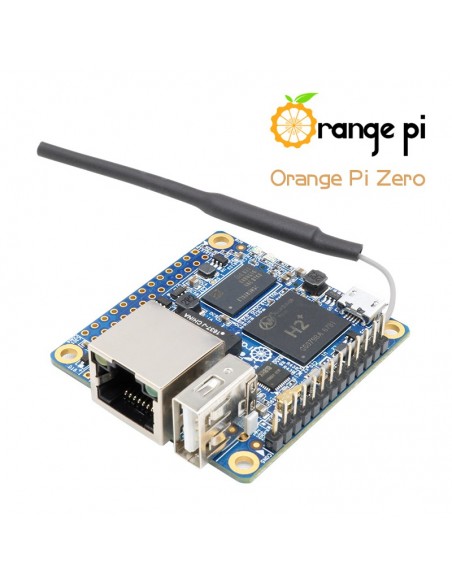

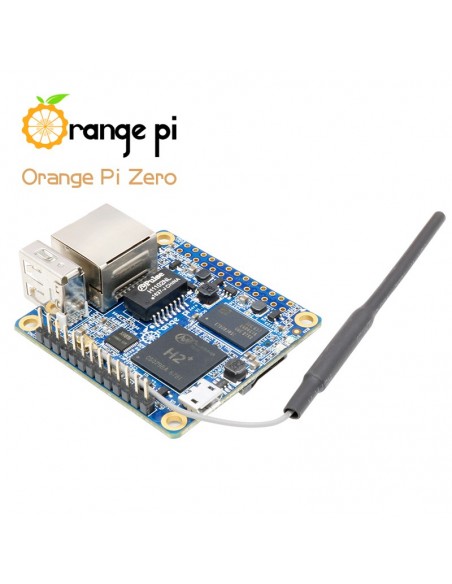

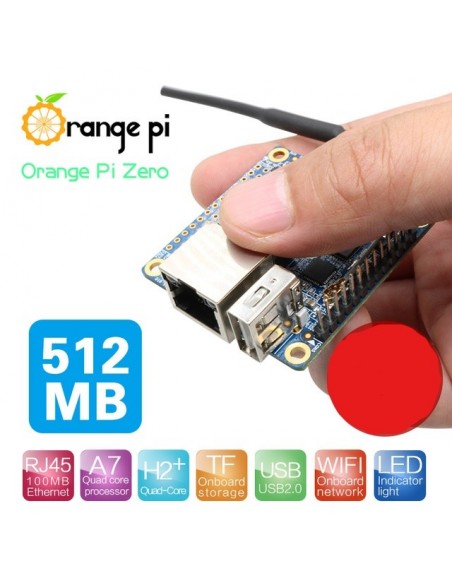

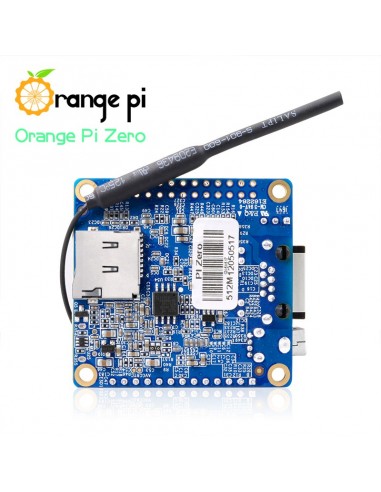

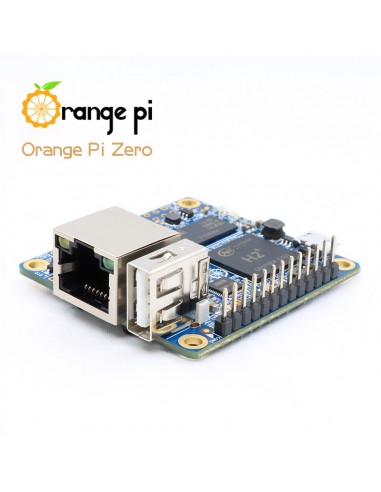

Orange Pi Zero 512MB

Hardware specification

CPU

H2 Quad-core Cortex-A7 H.265/HEVC 1080P.

GPU

·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0

Memory (SDRAM)

256MB/512MB DDR3 SDRAM(Share with GPU)(256MB version is Standard version)

Onboard Storage

TF card (Max. 32GB)/ Spi Flash

Onboard Network

10/100M Ethernet RJ45 POE is default off.

Onboard WIFI

XR819, IEEE 802.11 b/g/n

Audio Input

MIC

Video Outputs

Supports external board via 13pins

Power Source

USB OTG can supply power

USB 2.0 Ports

Only One USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power Button

Low-level peripherals

26 Pins Header, compatible with Raspberry Pi B+

13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)

LED

Power led & Status led

Supported OS

Android, Lubuntu, Debian, Raspbian

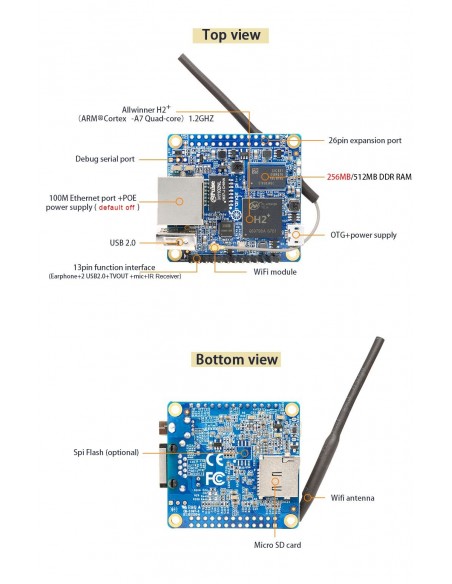

Interface definition

Product size

48 mm × 46mm

Weight

26g
