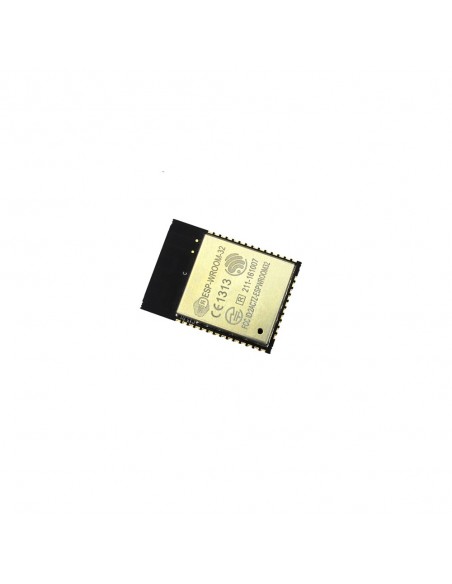

ESP-WROOM-32

ESP-WROOM-32

No reward points for this product.

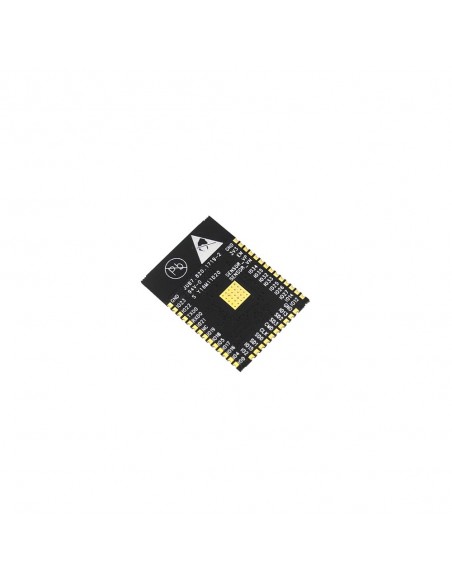

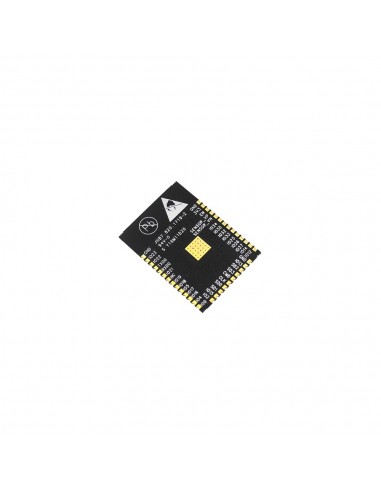

The microcontroller ESP-WROOM-32

More details...

In stock: 5

00606

9,50 €

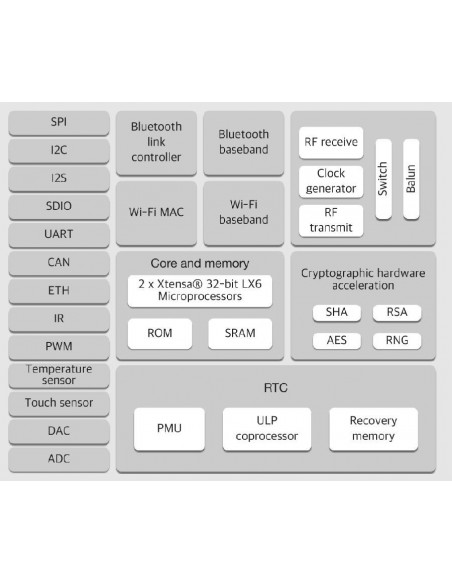

ESP32 IS a modern microcontroller from Espressif Systems, which was released recently (2016). It has very immodest features:

- Dual-core 32-bit processor, operating at a frequency of 80, 160 or 240 MHz (well, plus another energy-saving core with a reduced set of commands and at a frequency of 32 KHz)
-520 KB RAM
-448 KB of flash memory (actually there are more, will be discussed further)
- Power Supply 2.2-3.6 V
-Optional external flash-memory 4-16 MB (what I was talking about earlier)


- Wi-Fi 802.11 n with a maximum speed of 150Mbps
-4.2 BT BR/EDR and Low Energy


- ADC 12-bit X18
-DAC 8-bit x2
- Built-in temperature sensor
-SPI x4
-I2S x2
-I2C x2
-UART x3
- Ethernet controller
-CAN 2.0
- Infrared controller, and, both for reception and transmission
- PWM on all ports like
- Built-in Hall sensor


- A bunch of peripherals for cryptography (cryptographers, hashes, gsch)


And so same energy consumption:

-When the Wi-Fi transfer 160-260 mA
-No Wi-Fi and BT 20 mA
- Soft sleep mode 0.8 mA
- Deep sleep mode 10 µa
-Hibernacja with the included kernel low energy consumption 5 µa
ACHTUNG! You will often encounter the word RTC when using ESP32. However, this is not a Real time Clock, but a low power core.

Installation

1. Download the Arduino IDE

2. Install Git from the site

3. Run Git GUI

3.1. Select Clone Existing Repository

3.2. In the Source Location write

https://github.com/espressif/arduino-esp32.git
3.3. In the Target Directory write

C:/Users / [USERNAME]/Documents/Arduino/hardware/espressif / esp32
3.4. Click Clone

4. Open the directory

C:/Users / [USERNAME]/Documents/Arduino/hardware/espressif/esp32 / tools
and run the file get.exe

5. Connect our Board

5.1. If the drivers themselves are not installed, then install the driver for CP210x (I had CP2102) from here

6. Run the Arduino IDE

7. Select the cost in the Tools > Board (Tools > Board) (I DOIT ESP32 DEVKIT V1)

8. Select the COM port to which the Board is installed

8.1. How to identify a port?

8.1.1. Open device Manager

8.1.2. Open the group "Ports (COM & LPT)"

8.1.3. Look the name of the device. There must be something like that among them

Meet ESP32, part 1: installing the Arduino IDE ESP32, arduino, instruction, first run, dinobot


COM7 - this is our port.

9. Select any example (for example, here)

10. Load by pressing Ctrl + U

10.1. Some instructions say that you need to press the BOOT button on the Board during boot. However, I started it without her.

Write your review

ESP-WROOM-32

ESP-WROOM-32

The microcontroller ESP-WROOM-32

Write your review

30 other products in the same category :

LilyPad

LilyPad

8,00 €

Mega 2560 R3 Micro USB (CH340G)

Mega 2560 R3...

12,50 €

Pro Micro ATmega32U4 5V/16MHz

Pro Micro...

9,20 €

Nano V3.0 ATmega168/CH340 MicroUSB

Nano V3.0...

5,50 €

Nano V3.0 ATmega328/CH340 MicroUSB

Nano V3.0...

7,30 €

UNO R3 Micro USB + A6-A7 pins  (CH340)

UNO R3 Micro...

8,50 €

UNO R3 WiFi ATmega328P+ESP8266

UNO R3 WiFi...

19,50 €

LEONARDO R3, ATmega32U4

LEONARDO R3,...

9,80 €

Mega 2560 PRO (Embed) CH340G/ATmega2560-16AU (no pinheaders)

Mega 2560...

14,50 €

MEGA 2560+WiFi R3 ATmega2560+ESP8266, flash 32MB, USB-TTL CH340G, Micro-USB

MEGA...

24,00 €

Crowduino M0 SD Board (Elecrow - Arduino UNO Platform comp.)

Crowduino M0...

29,50 €

ESPDUINO-32 (Wemos D1 R32)

ESPDUINO-32...

14,90 €

 DIP28 ATmega328P-PU

DIP28...

4,50 €

NodeMcu V3 4M ESP8266

NodeMcu V3...

6,60 €

WeMos D1 R2 V2.1.0 WiFi uno based ESP8266 for arduino nodemcu Compatible

WeMos D1 R2...

12,90 €

WeMos D1 mini - Mini NodeMcu 4M bytes

WeMos D1...

6,20 €

Wemos D1 R2 ESP8266 32M

Wemos D1 R2...

9,90 €

WEMOS D1 mini Pro - 16M ESP8266 WIFI

WEMOS D1...

9,50 €

NodeMcu Light ESP8266-PRO

NodeMcu...

5,80 €

NodeMcu LUA ESP8266

NodeMcu LUA...

9,20 €

WEMOS XI

WEMOS XI

3,90 €

D-duino-32 (ESP32&0.96OLED display)

D-duino-32...

18,50 €

NodeM Lua WIFI ESP8266 CP2102 + 32M Flash

NodeM Lua...

6,50 €

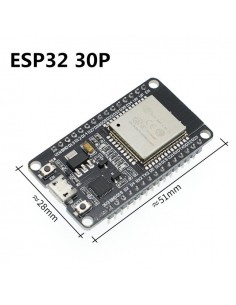

NodeMCU ESP-32 V1.1
