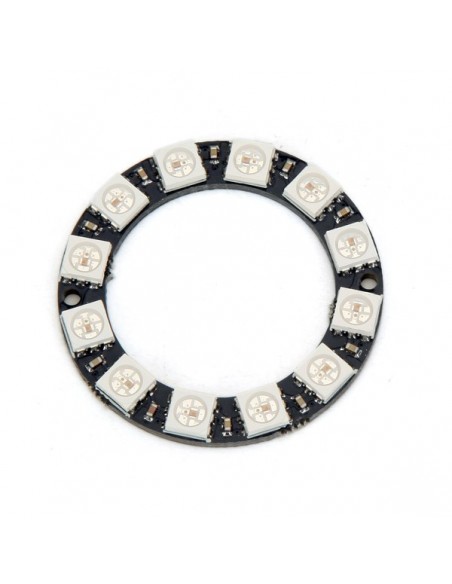

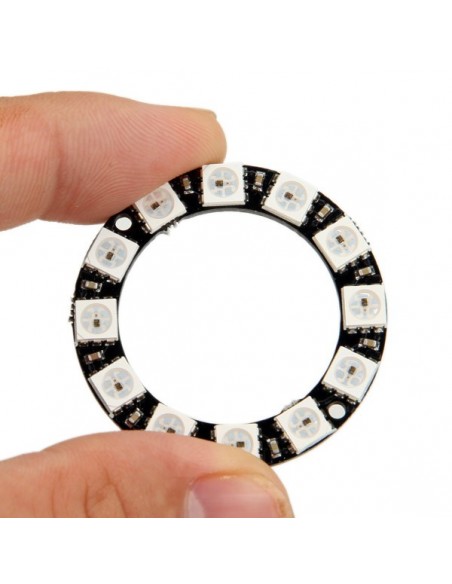

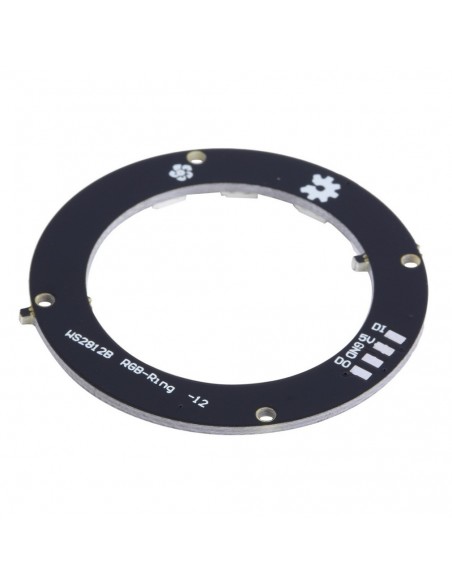

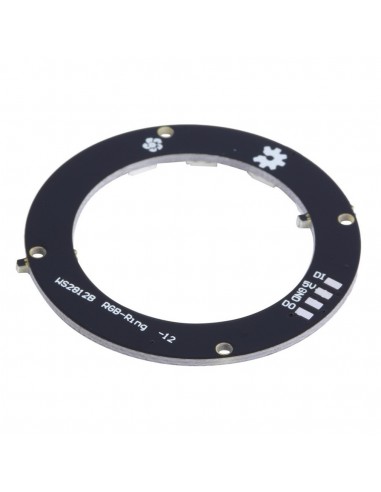

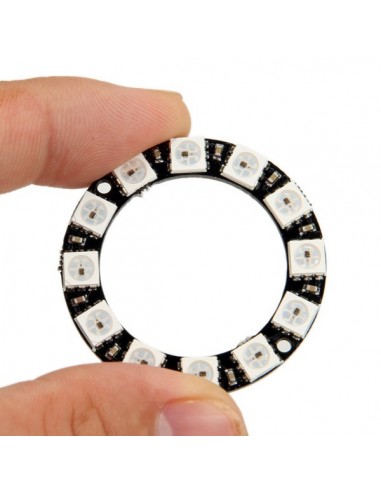

RGB Ring 12 BIT WS2812 5050
Riņķa RGB modulis (12 bitu, WS2812, 5050)
• Intelligent reverse polarity protection, power supply reverse polarity will not damage the IC.
• IC control circuit and a power LED spot light utility.
• Control circuit chip with RGB components in a package in 5050, to form a complete external control pixels.
• built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
• Built-in power-on reset and brown-out reset circuit.
• trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s.
• serial cascade interface, through a signal line to complete the receiving and decoding of data.
• transfer transmission distance between any two points in less than 5 meters without any additional circuitry.
• When the refresh rate of 30 frames / sec, cascading number of not less than 1024 points.
• data transmission speeds of up to 800Kbps.
• The color of the light highly consistent, cost-effective
