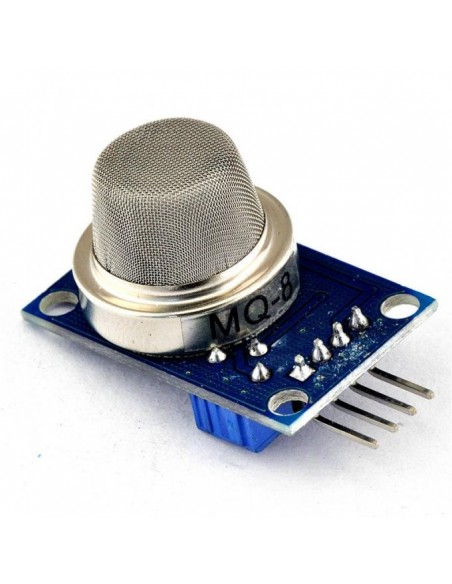

MQ-8

Apraksts:

• Izmērs:32mm X22mm X27mm
• Galvenais mikroshēmas:LM393,ZYMQ-8Gas sensori
• Barošanas spriegums sildītājs: 5V
• Barošanas spriegums sensori: 3,3–5V
• Patērējamā strāva: 150 ma

Characteristics:

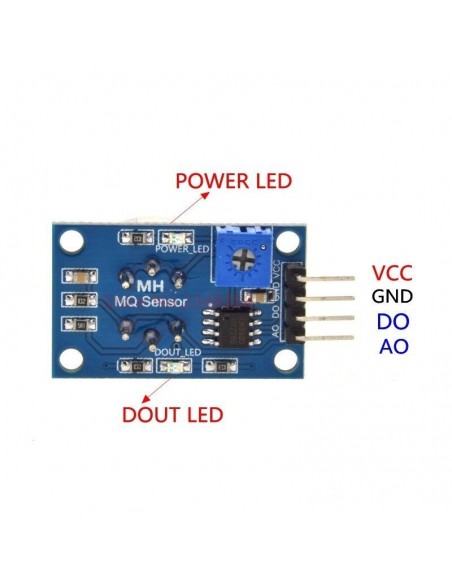

• Having a signal output instruction .
• Dual signal output ( analog output and TTL Level output)
• TTL Output valid signal is low. (When the output low signal light can be directly connected to the microcontroller)
• Analog output 0 ~ 5V, the higher the concentration the higher the voltage .
• Has good sensitivity to hydrogen .
• Stability has a long life and reliable
• Rapid response and recovery characteristics

Application :

• Suitable for home or industrial hydrogen gas leak monitoring devices. Can not interfere with ethanol vapor , soot , carbon monoxide and other gases.
