1. Product description:

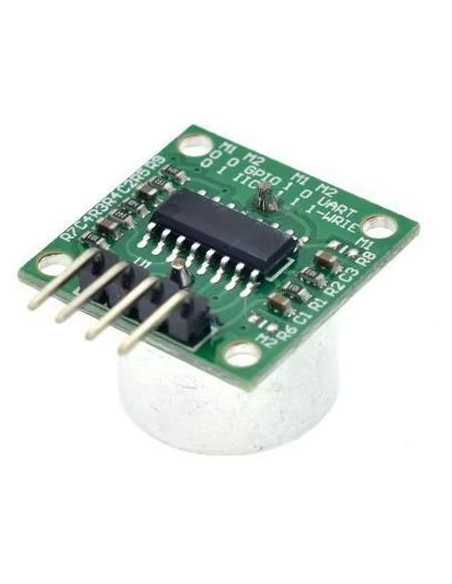

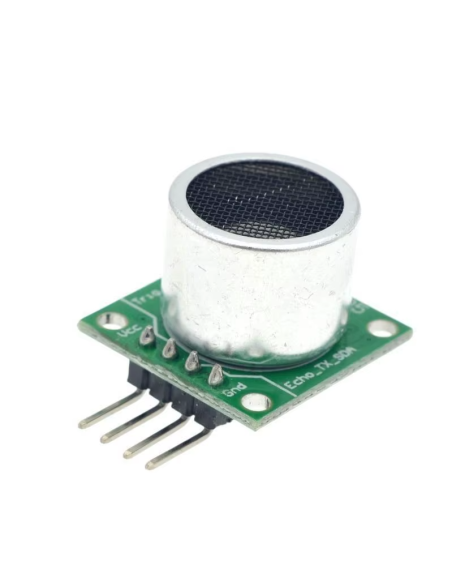

RCWL-1605 is a transceiver integrated ultrasonic ranging module designed by our company's self-developed chip RCWL-9623.
By default, the software is fully compatible with our old version HC-SRO4; it can be set to UART, 1IC or single-bus mode through a resistor. 25CM dead zone, 4.5M typical maximum distance measurement, 2mA ultra-low working current. The self-developed chip RCWL-9625 is used to make the periphery more concise, the working voltage is wider (2.8-5.5V), and the interface functions are more.
2. Main features:
Using professional chip RCWL-9623 Working voltage: 2.8-5V Working current: 2mA
Support GPIO, UART, IIC and 1-WIRE multiple output modes, the default output mode is compatible with HC-SRO450mS cycle
The data is completely open source, and customers can download it by themselves
3. Typical application:
4. Performance parameters:
|
parameter name
|
Remark
|
minimum
|
Typical value
|
maximum value
|
unit
|
|
Operating Voltage
|
|
2.8
|
|
2.5
|
V
|
|
Working current
|
|
1.8
|
2
|
3
|
mA
|
|
Maximum detection distance
|
flat wall
|
|
450
|
550
|
CM
|
|
working frequency
|
|
|
40
|
|
KHz
|
|
blind spot
|
Random value in the blind zone
|
24
|
25
|
26
|
CM
|
|
Detection accuracy
|
same temperature
|
|
±2
|
|
%
|
|
Resolution
|
theory
|
|
1
|
|
mm
|
|
Detection angle
|
Maximum direction angle
|
|
±15
|
±20
|
°C
|
|
Measurement cycle time
|
|
|
50
|
|
mS
|
|
output interface mode
|
|
GPIO/UART/1IC/1-WIRE
|
|
|
Operating temperature
|
Plastic case probe (to be customized)
|
-10
|
|
60
|
°C
|
|
Operating temperature
|
Aluminum shell probe
|
-10
|
|
70
|
°C
|
