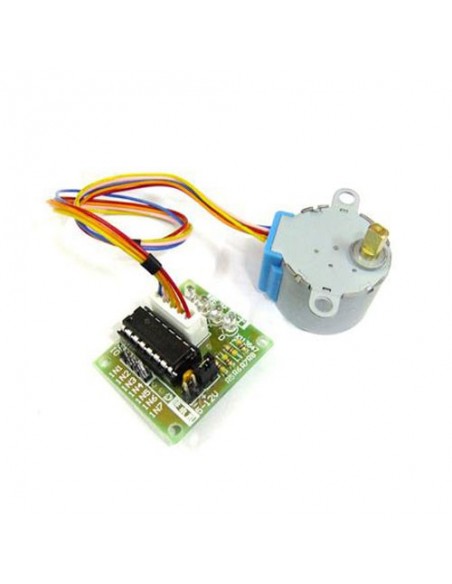

Soļdzinēja motors - 28BYJ-48
Soļdzinēja motors ar vadības plates (4 FAZ, 5-12V, 1/64; 450gr/cm)
- Color: Silver
- Diameter: 28mm
- Voltage: 5V
- No-load pull into the frequency: >600Hz
- Phase: 4
- No-load pull-out frequency: >1000Hz
- Reduction ratio: 1/64
- Pull-in torque: >34.3mN.m (120Hz)
- Step Angle: 5.625 x 1/64
- Self-positioning torque: >34.3mN.m
- DCR: 200ohm +/- 7% (25'C)
- Temperature: <40K (120Hz)
- Insulation resistance: >10Mohm (500V)
- Noise: <40dB (120Hz, No load, 10cm)
- Dielectric Strength: AC 600V / 1mA / 1s
- Insulation Class: A
- Cable length: 24cm
- Suitable for guide wind deflector, portable air conditioner valve, etc
- Diameter: 28mm
- Voltage: 5V
- No-load pull into the frequency: >600Hz
- Phase: 4
- No-load pull-out frequency: >1000Hz
- Reduction ratio: 1/64
- Pull-in torque: >34.3mN.m (120Hz)
- Step Angle: 5.625 x 1/64
- Self-positioning torque: >34.3mN.m
- DCR: 200ohm +/- 7% (25'C)
- Temperature: <40K (120Hz)
- Insulation resistance: >10Mohm (500V)
- Noise: <40dB (120Hz, No load, 10cm)
- Dielectric Strength: AC 600V / 1mA / 1s
- Insulation Class: A
- Cable length: 24cm
- Suitable for guide wind deflector, portable air conditioner valve, etc
Dimensions: 1.65 in x 1.22 in x 0.79 in (4.2 cm x 3.1 cm x 2.0 cm)
Weight: 1.20 oz (34 g)
Weight: 1.20 oz (34 g)
- Tips:
- Soļdzinēja motors
- Darba spriegums:
- 5V-12V
- Izmērs:
- D-25mm; h-18mm
- Griezes moments:
- 450gr*cm
- Fāžu skaits:
- 4
- Pretestības fāzes:
- 200 om (+-7%)
- Izolācijas pretestība:
- 10 Mom
- Solis leņķis:
- 5.625 gr
- Pārnesumu attiecība:
- 1:64
- Frekvence:
- 100 Hz
