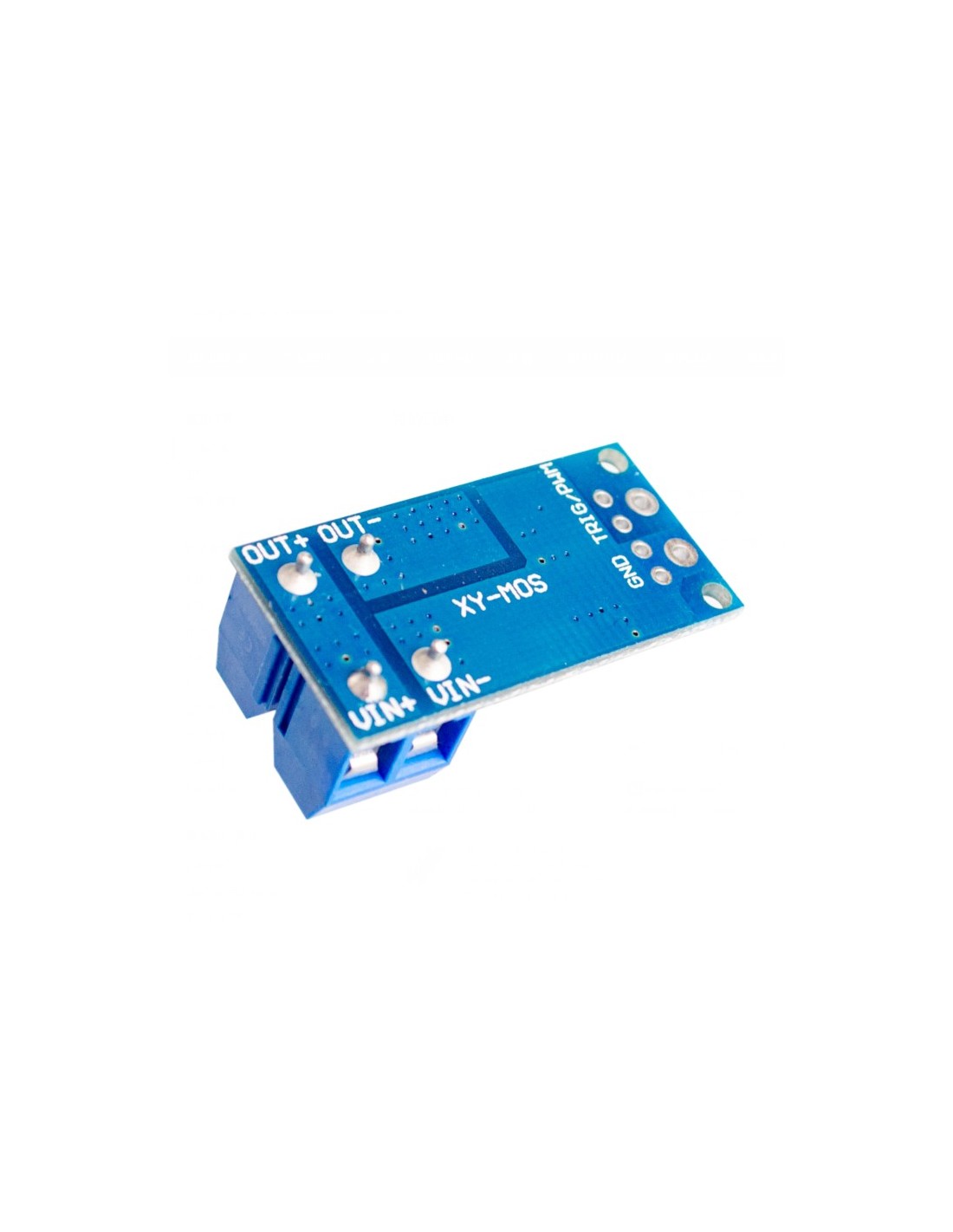

MOSFET Trigger Switch Drive Module PWM Regulator 15A 400W

Features

• The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
• Wide voltage, the perfect support for PWM
• Easily control high power devices
• Input PWM to achieve motor speed control, lamp brightness control

Specifications

• Operating Voltage: DC 5V - 36V;
• The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces,  DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support.
• Output capacity: DC 5V - 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary  cooling conditions, the maximum current up to 30A.
• Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps,  solenoid valves, etc., you can enter
• PWM, motor speed control, lamp brightness.
• Availability: unlimited switch
• Operating temperature: -40-85
• Dimension: 34mm x 17mm x 12mm
