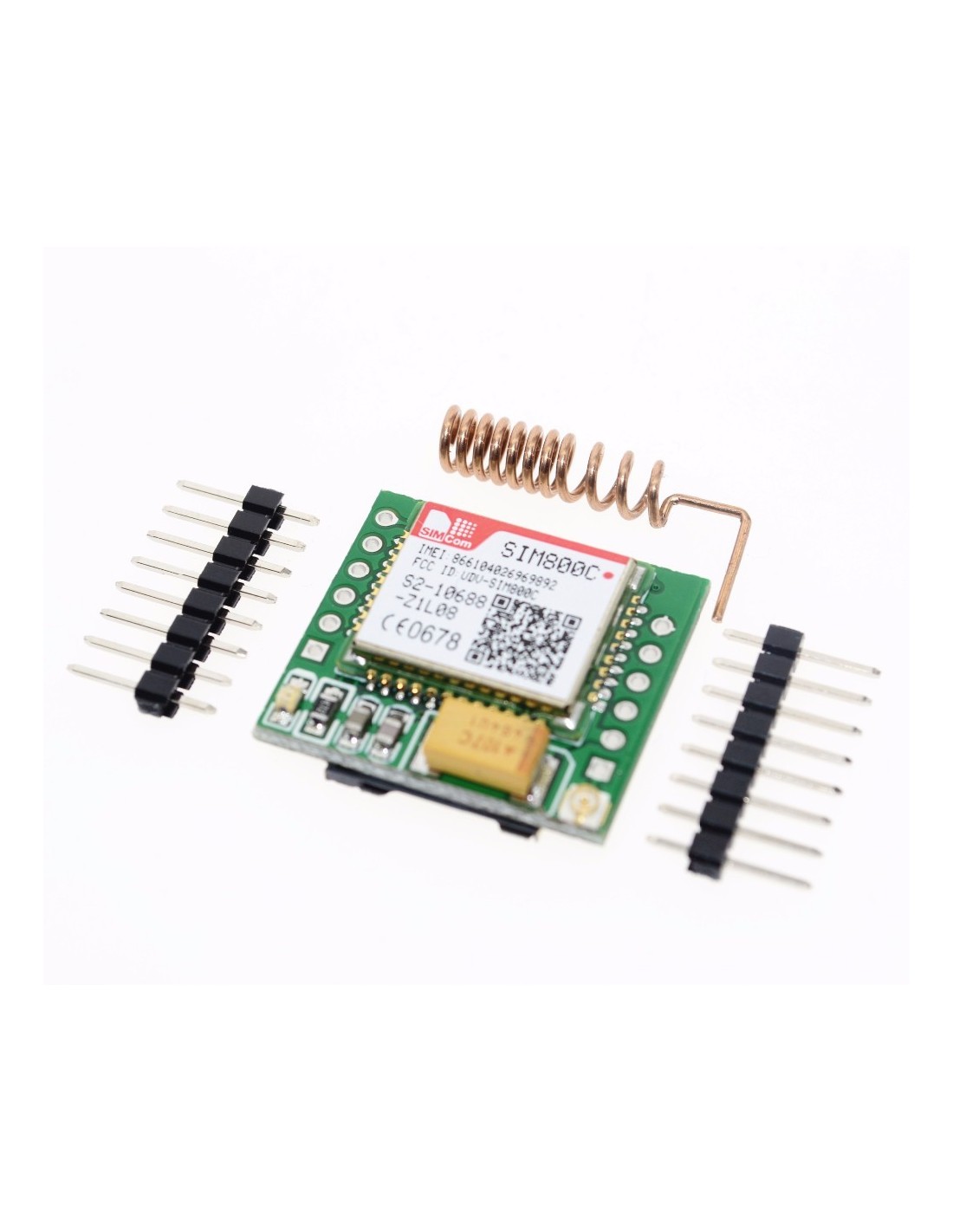

GSM Module SIM800C with MicroSIM

General features

• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
  • - Class 4 (2 W @ 850/900 MHz)
  • - Class 1 (1 W @ 1800/1900MHz)
• FM: 76~109MHz worldwide bands with 50KHz tuning step
• Dimensions: 17.6*15.7*2.3 mm
• Weight: 1.3g
• Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature:-40°C~85°C

Specifications for GPRS Data

• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• CSD up to 14.4 kbps
• USSD

Specifications for SMS via GSM/GPRS

• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode

Software features

• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• E-MAIL
• DTMF
• Jamming Detection

Specifications for voice

• - Half rate (HR)
• - Full rate (FR)
• - Enhanced Full rate (EFR)
• AMR
• - Half rate (HR)
• - Full rate (FR)
• Hands-free operation
• (Echo suppression)
