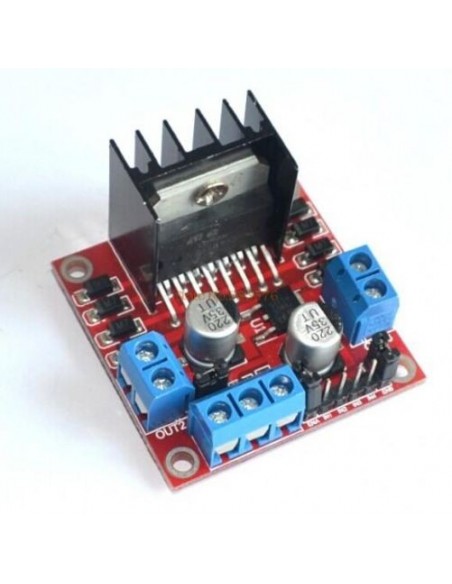

L298N motor driver
Драйвер двигателей на L298N

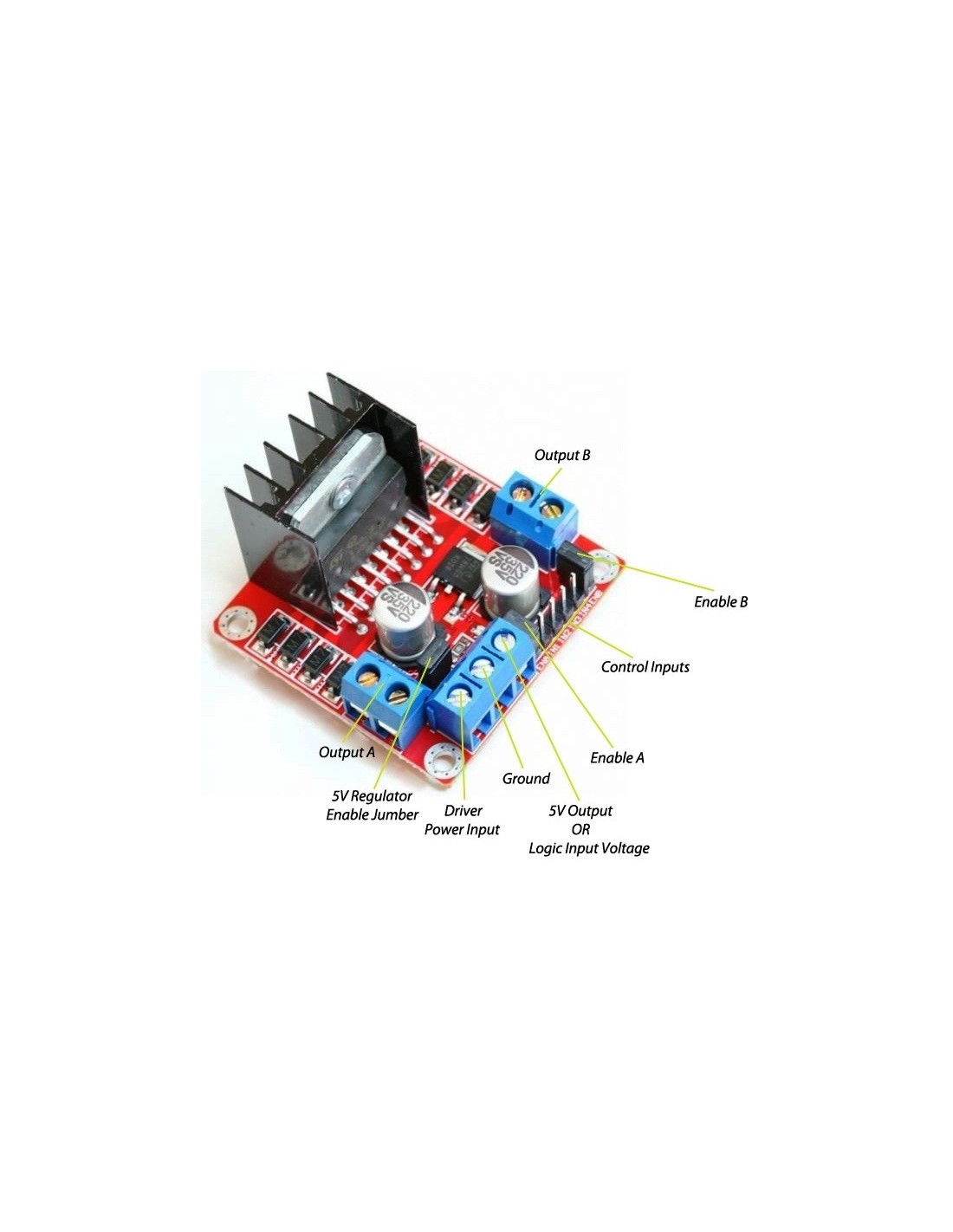

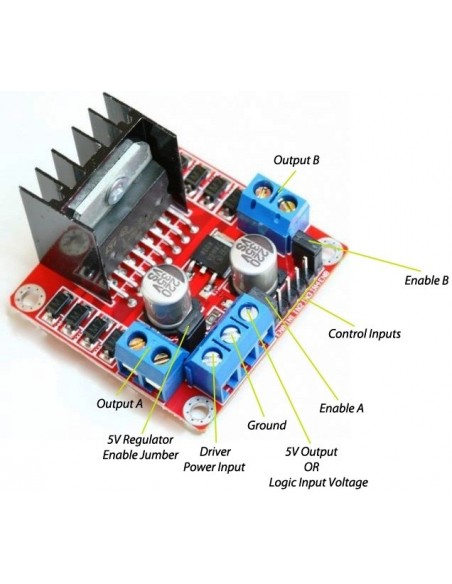

The L298N driver module, using ST L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface, you can chip circuitry to 5V power supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential.
- Driver chip: L298N dual H-bridge driver chip
- Terminal driver part of the supply area VMS: +5 V ~ +35 V
- Drive part of the peak current Io: 2A / Bridge
- Logical part of the terminal power supply range Vss :4.5-5 .5 V
- Logical part of the operating current range: 0 ~ 36mA
- The control signal input voltage range: 4.5-5.5V low 0V high
- Maximum power consumption: 20W
- Storage temperature: -25 ~ +130
- Driver Board Size: 55mm * 60mm * 30mm
- 1Driver board Weight: 33g
- Other features: control direction indicator, power indicator, current detection, logical part of the plate to take power interface.
