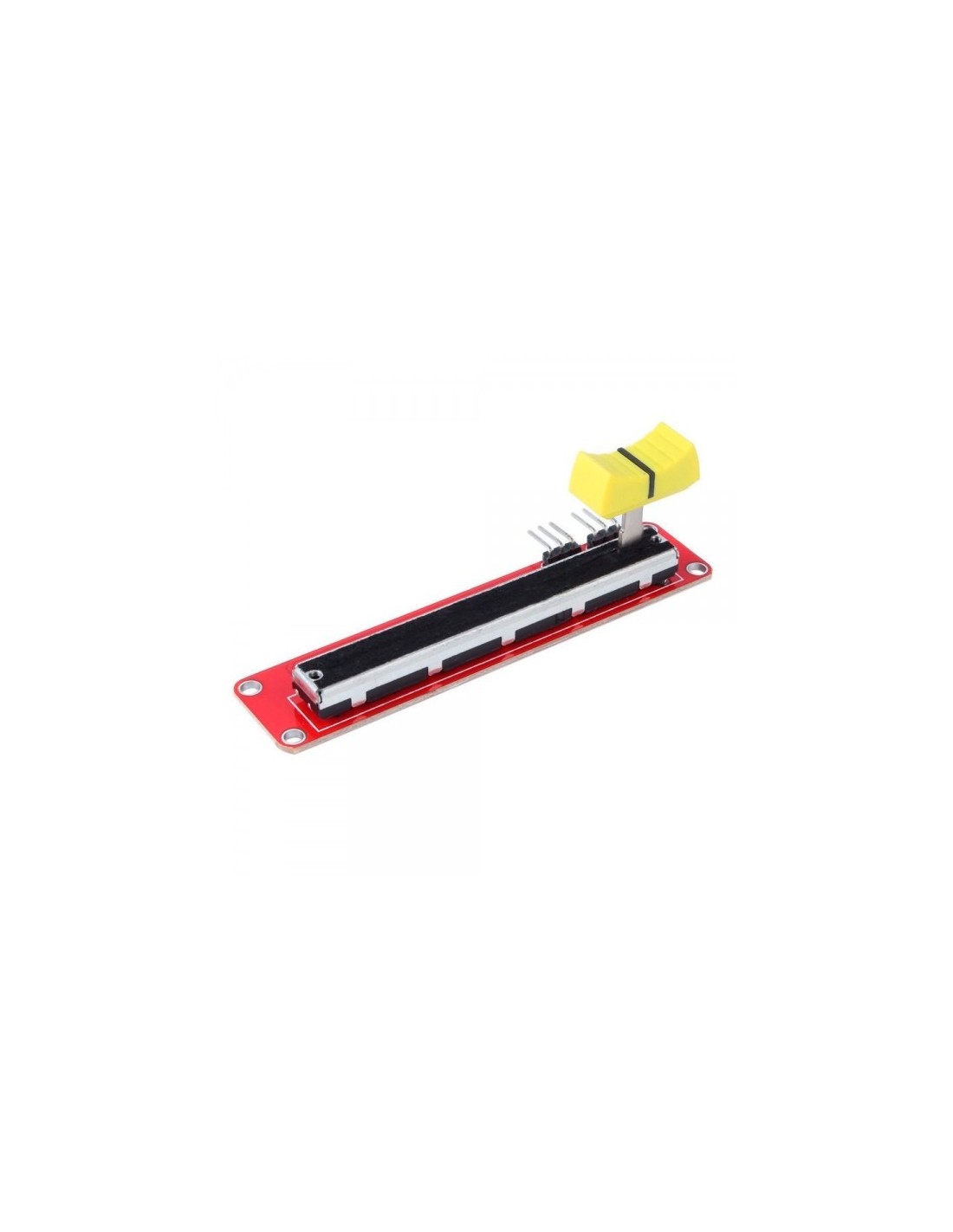

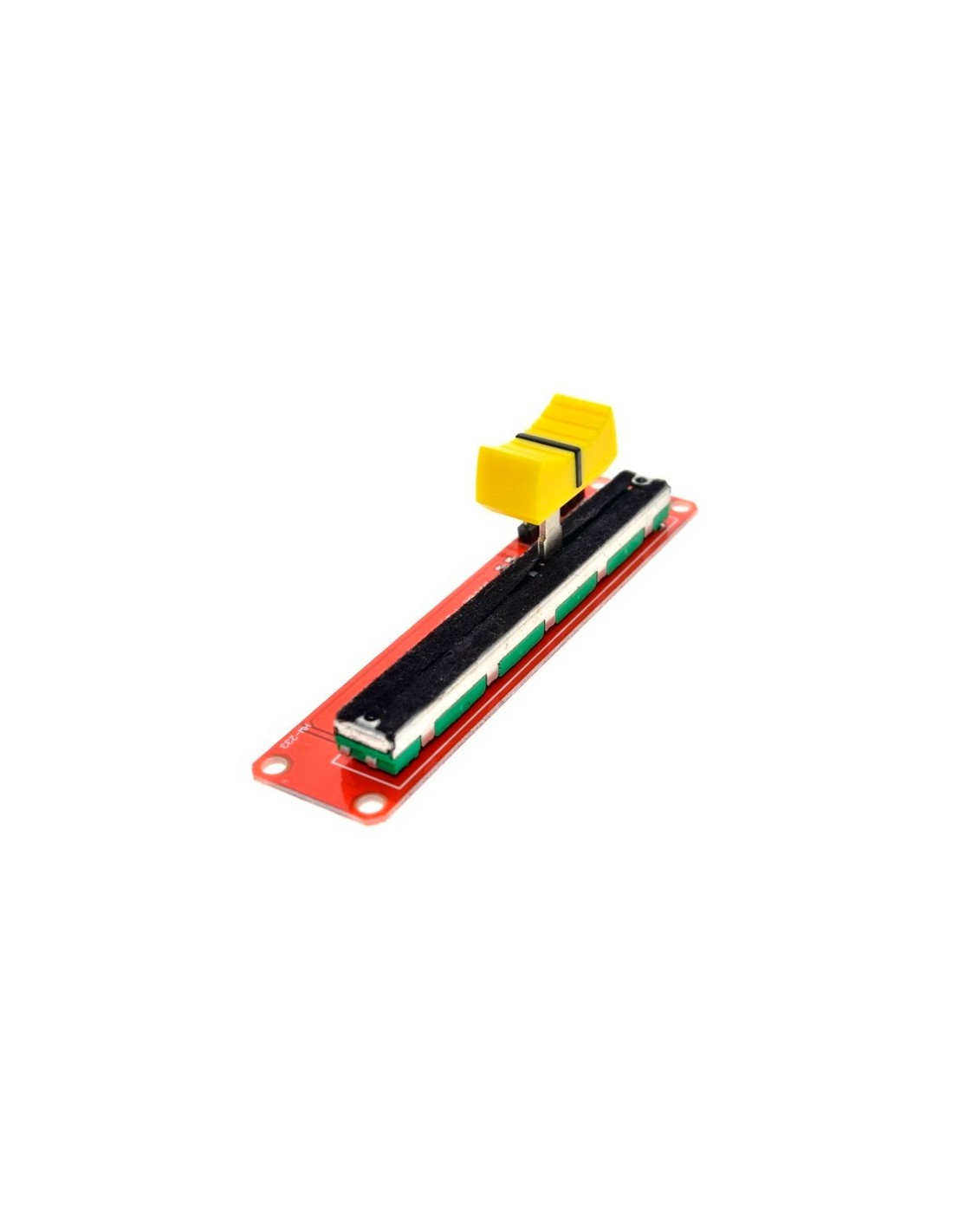

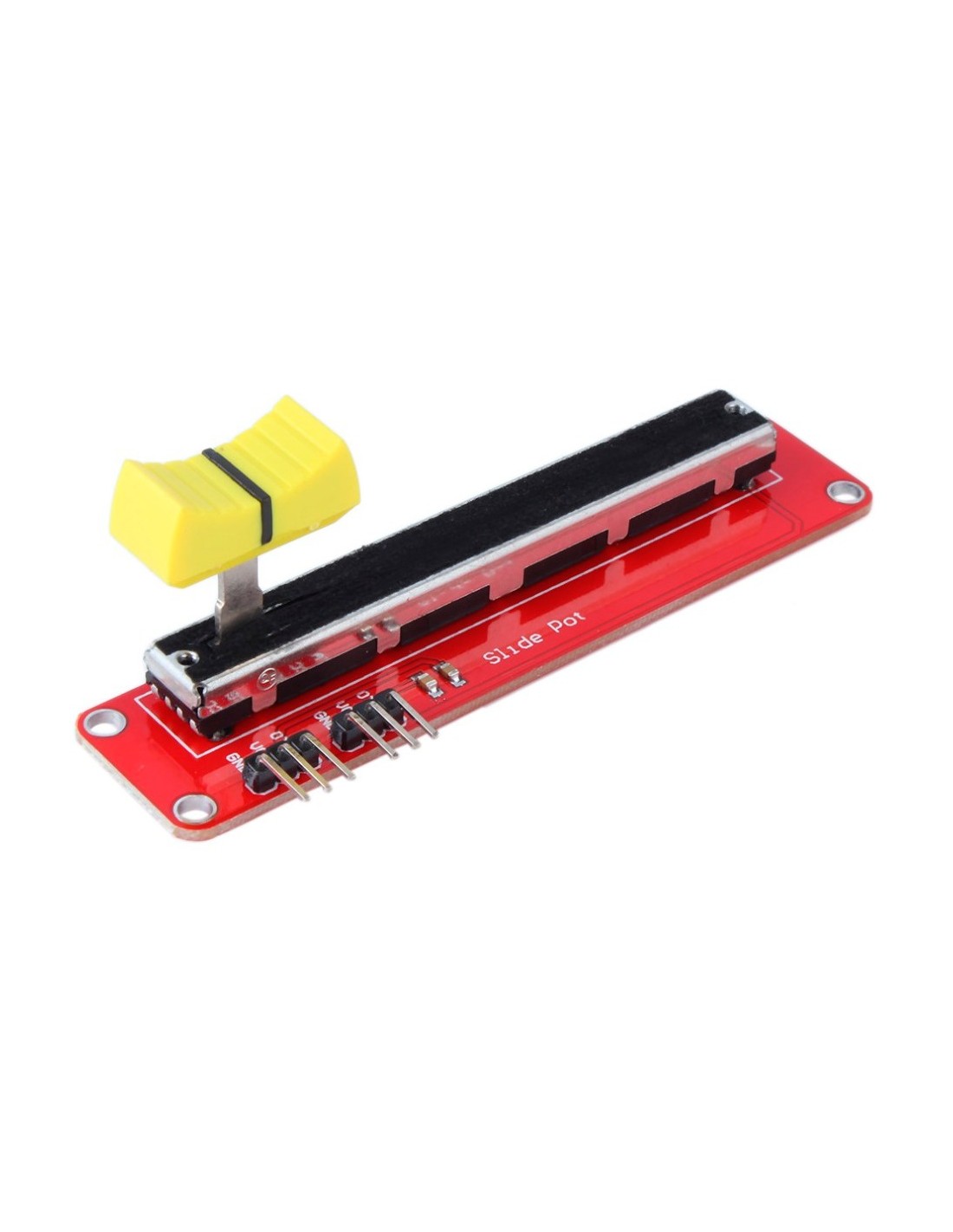

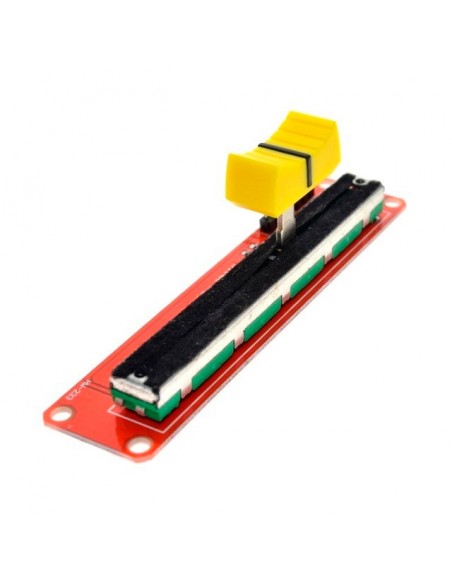

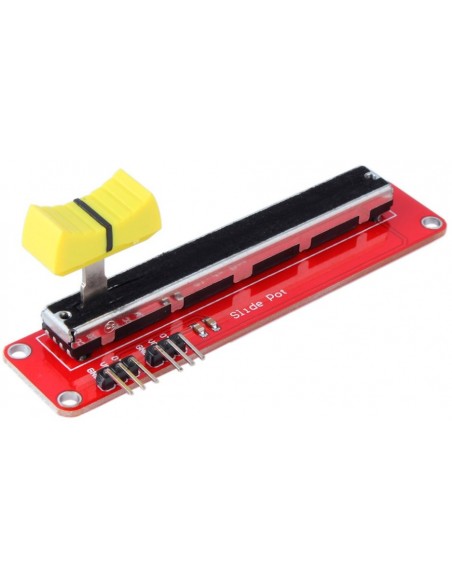

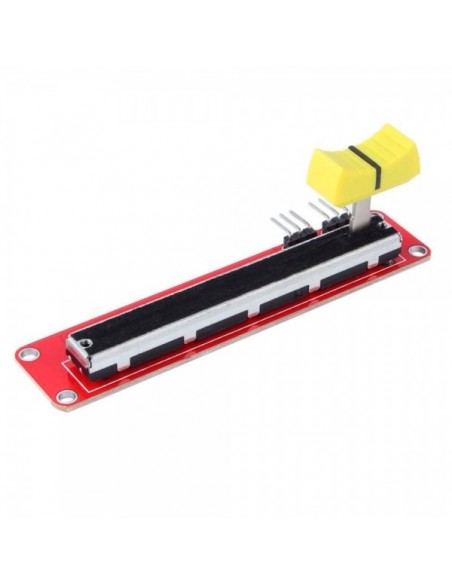

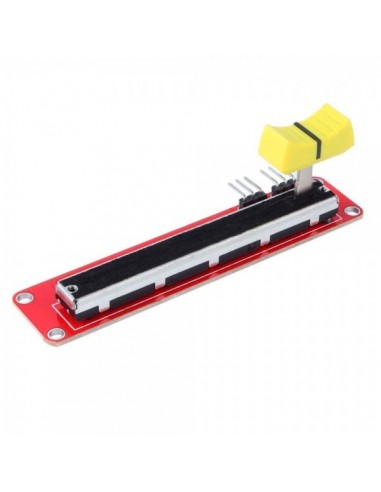

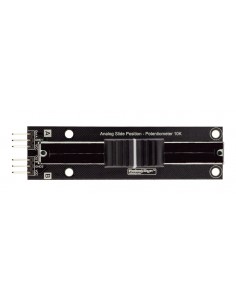

Slide position potentiometer (analog). 10KOhm

00905
Out-of-Stock
€2.50




Description

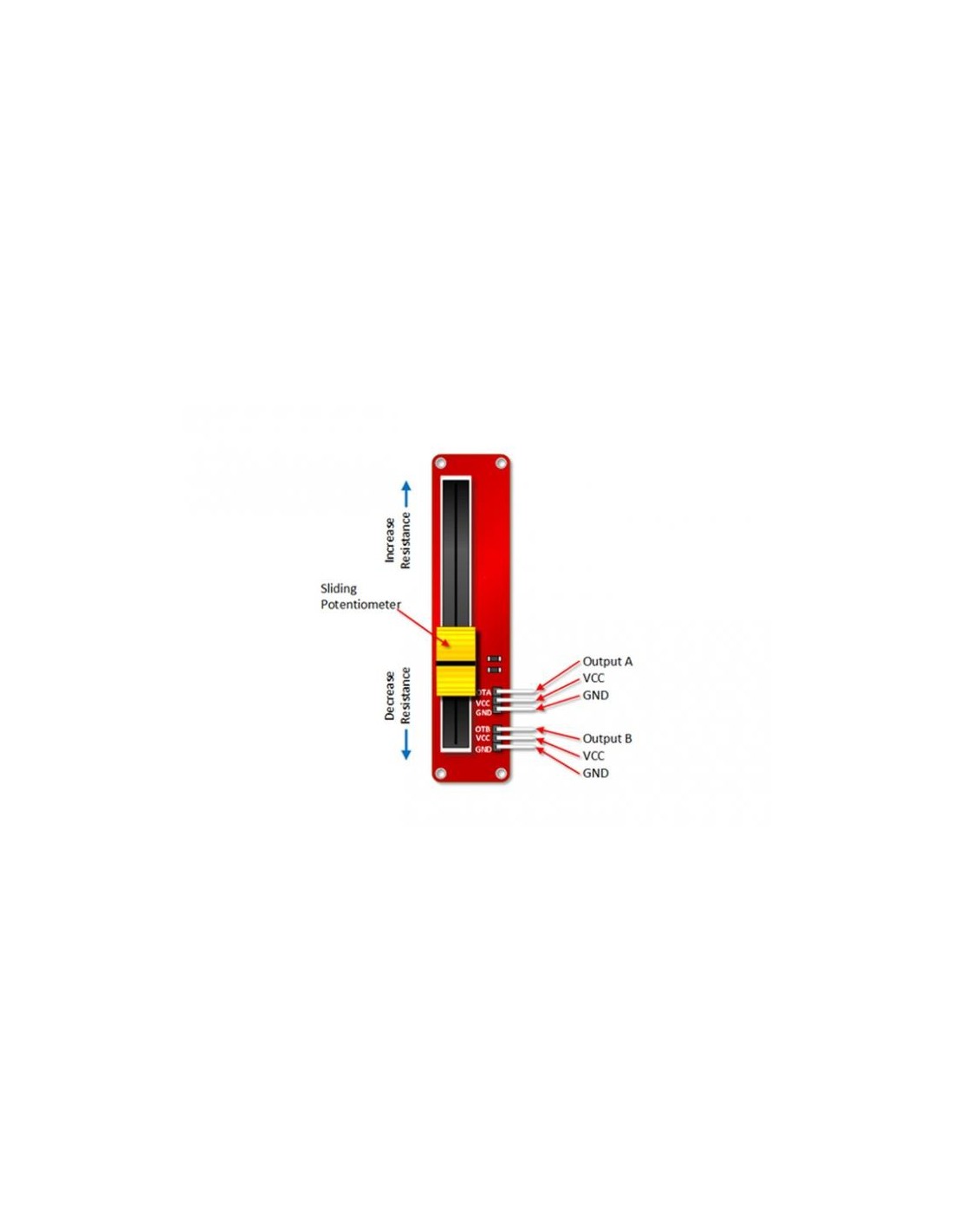

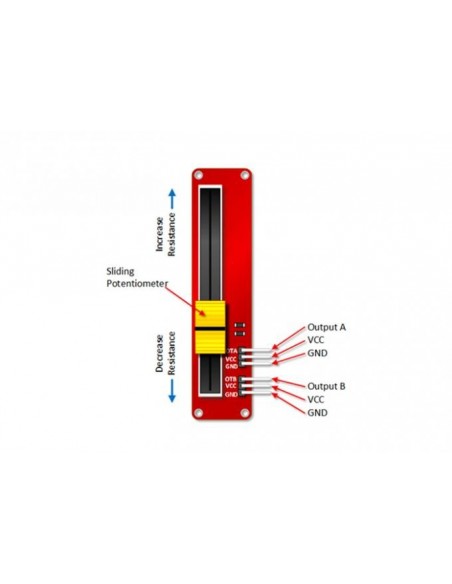

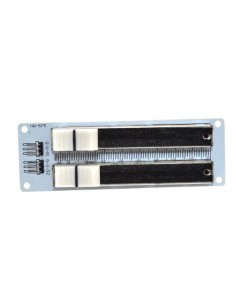

This is module has two 10K potentiometers in one module. In most applications you will only require three connections to your open source board (i.e., VCC, GND and Output A/B). This dual potentiometer can be used in Stereo Audio volume control application, where you may need to control the Left and Right channels simultaneously but without mixing the channels in each other.


A slide potentiometer, offers some benefits to an operator interface. For example, controlling up and down, forward and reverse, left and right, can be confusing when incorporating a rotary potentiometer. Slide potentiometers, when positioned correctly, can lessen that confusion.



Specification

Size: 90mm (L), 20 mm (W), 30mm (H)
Knob height above pcb 26.7mm
Slider Maximum displacement: 60mm
Pin pitch: 2.54mm
PCB Color: Red
Voltage: 3.3 V, 5 V
Output: Analog Voltage from 0.0V to VCC
Resistance: 10 k
Type: Linear
