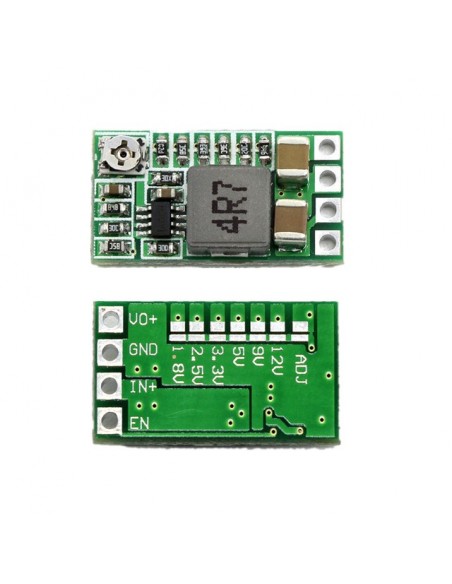

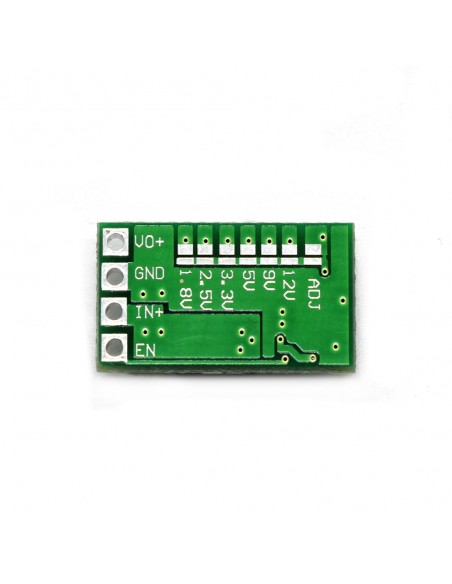

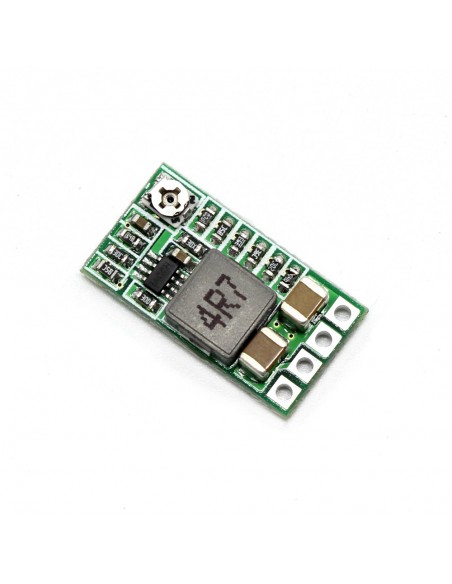

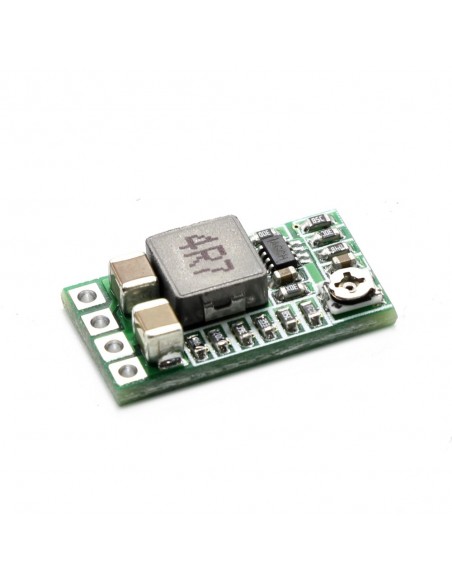

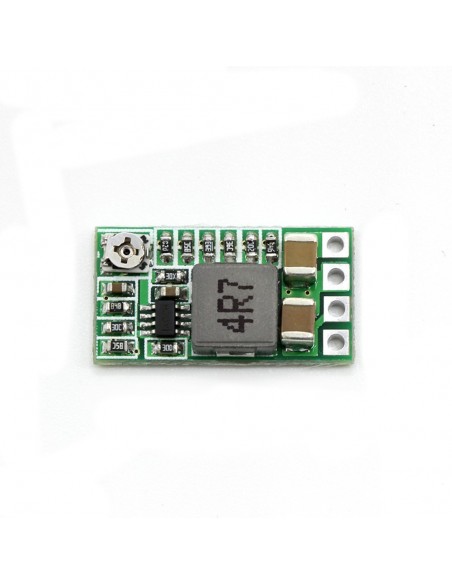

DC-DC Step Down Converter 4.5-24V To 0.8-17V
DC-DC Converter 4.5-24V to 0.8-17V 3A
- 1.Input Voltage:DC 4.5-24V
- 2.Output Voltage:integration adjustable and fixed output,back side can choose fiexd output voltage
- 3.Adjustable Range:0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
- 4.Output Current:3A (max),actual testing input 12V output 1.5A
- 5.Transform Efficiency:97.5%(max) (6.5 to 5V 0.7A)
- 6.Switch Frequency:500KHz
- 7.Output Ripple Wave:20mV (12V to 5V 3A) 20m band width
- 8.Operating Voltage:-40 Celsius-85 Celsius
- 9.Output Overvoltage Protection:no
- 10.Static Current:0.85MA
- 11.Load Adjust Rate:±1%
- 12.Voltage Adjust Rate:±0.5%
- 13.Dynamic Response Speed:5% 200uS
- 14.Output Short Circuit Protection:yes
- 15.Input Transposition Protection:no
- 16.Enable Control:yes
- 17.Connecting Type:soldering
- 18.Input Way:soldering
- 19.Output Way:soldering/pin
- 20.Soldering Hole Space:2.54mm
