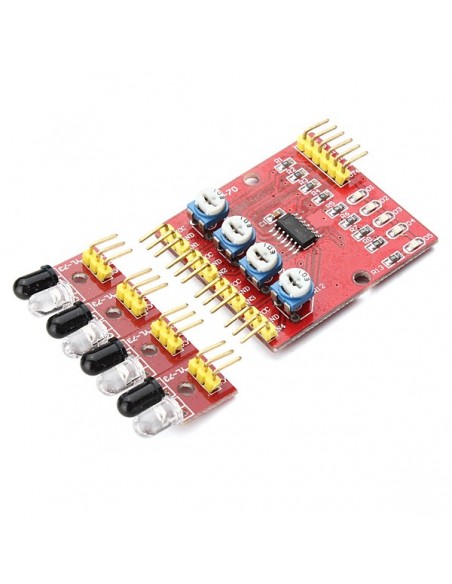

Sensor tracking (4 channel)
Sensor tracking (4 channel)
Sensor tracking (4 channel)
Sensor tracking (4 channel)

TCRT5000 Sensor tracking (4 channel)

Four Way Infrared Tracing 4 Channel Tracking Module

00388
2 Items
€5.60

(€5.60 kompl.)


  • Working voltage: DC 3.3V-5V
  • Working current: try to choose more than 1A power supply
  • Working temperature: - 10oC - +50oC
  • Mounting aperture: M3 screws
  • Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
  • Size: in the control panel of 42mm * 38mm * 12mm (length * width * height)
  • Small forward 25mm * 12mm * 12mm (length * width * height)
  • Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, - for the negative power is ground)
  • The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)

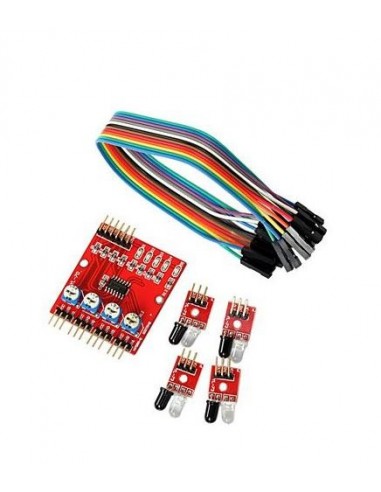

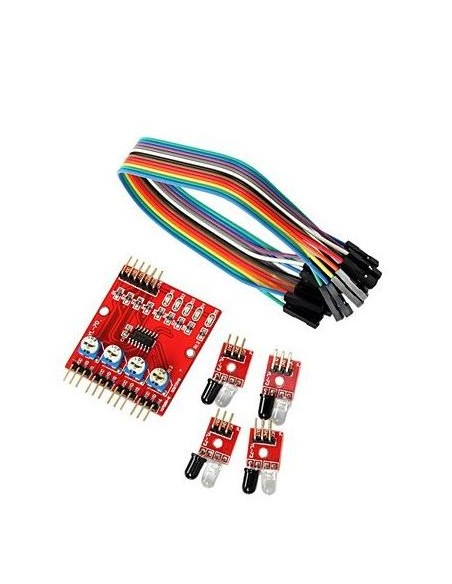

Package included:

  •    1 X Tracking Module (Hollow Board + Small Plate Forward)
  •    12 X Male to Male Dupont Lines
Operating Voltage:
5V
Measuring range:
10 mm
2 Items
