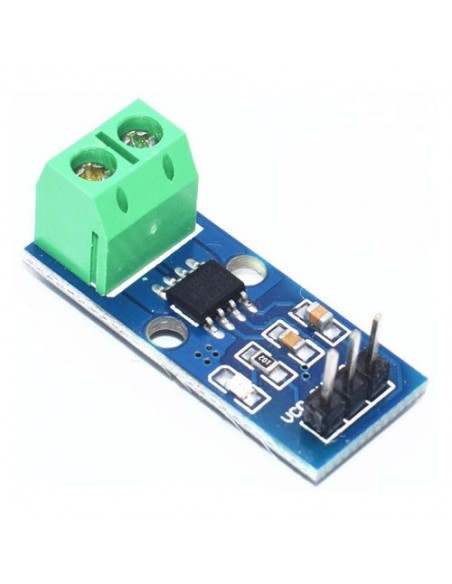

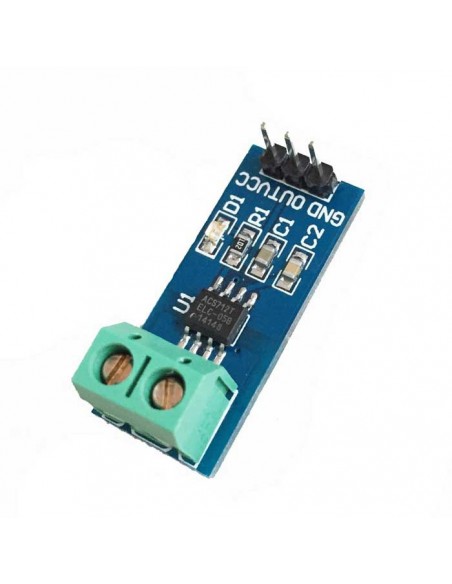

The current sensor module ACS712 20A

00758
Out-of-Stock
€2.70

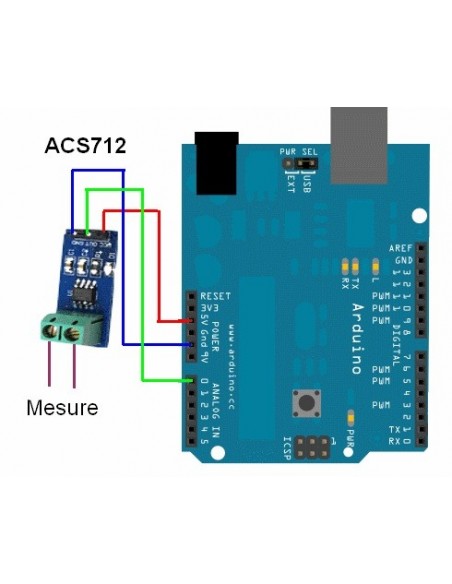

 Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc. This ACS721 current module is based on ACS712 sensor, which can accurately detect AC or DC current. The maximum AC or DC that can be detected can reach 20A, and the present current signal can be read via analog I / O port of Arduino.     There are also the 5A and 30A version for your choice

Specification

  • Supply Voltage: 4.5V~5.5V DC
  • Measure Current Range: -20A~ 20A

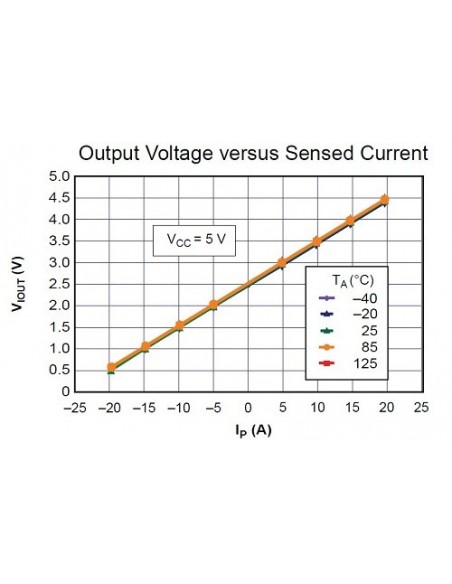

  • Sensitivity: 100mV/A
  • The size of the PCB board: 31 (mm) x13 (mm);
