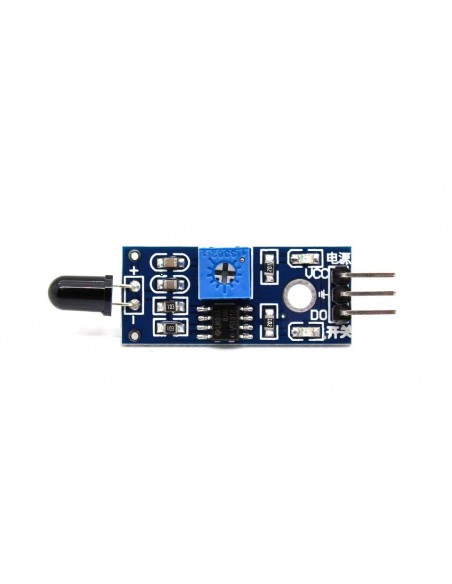

Liesmas sensors
Liesmas devēja modulis
Uses:
Various flame, fire detection
Module Features:
- One can detect a flame or in a 760 nanometer wavelength of ~ 1100 nm range of the light, lighter flame test distance of 80cm, for the greater flame, the farther the distance test
- the detection angle of 60 degrees or so, particularly sensitive to the flame spectrum
- sensitivity adjustable (shown in blue digital potentiometer adjustment)
- the comparator output signal clean, good waveform, driving ability, more than 15mA
- with adjustable precision potentiometer sensitivity adjustment
- the working voltage of 3.3V-5V
- the output format: digital switching outputs (0 and 1)
- a fixed bolt holes for easy installation
- small plates PCB Size: 3.2cm x 1.4cm
- using a wide voltage LM393 comparator
Module for use:
- the flame sensor flame most sensitive to ordinary light is also a reaction, generally used as a flame alarm purposes.
- a small plate output interface can be directly connected to the microcontroller IO port
- with the flame sensor to maintain a certain distance, so as not to damage the sensor temperature, the flame of a lighter test distance 80cm, for the greaterflame, the farther the distance test
- Darba spriegums:
- 0-15V
- Montāža:
- atsevišķs modulis
