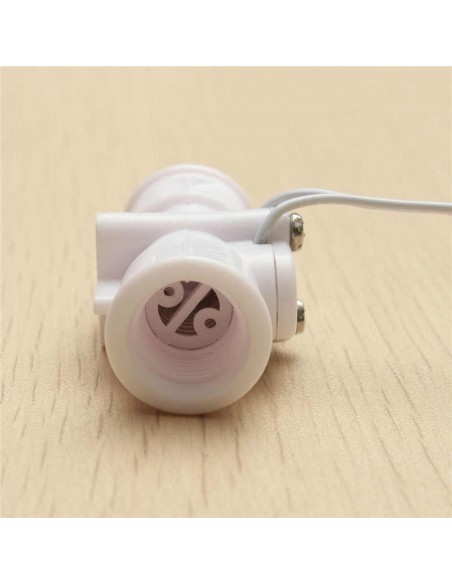

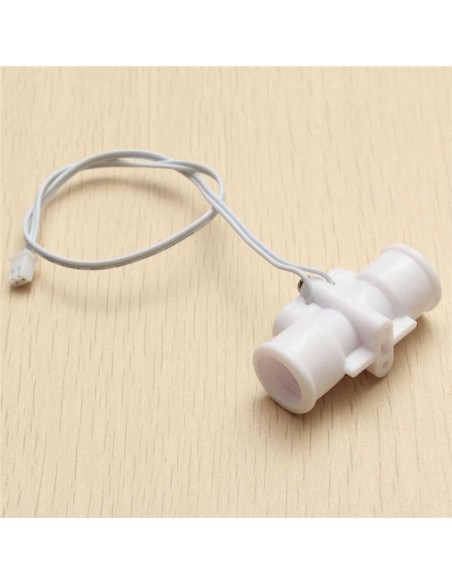

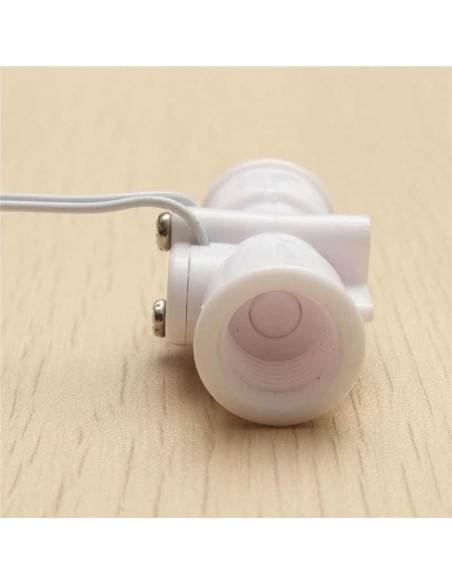

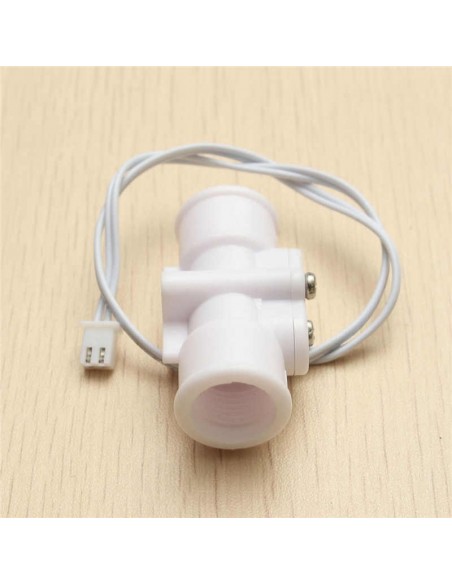

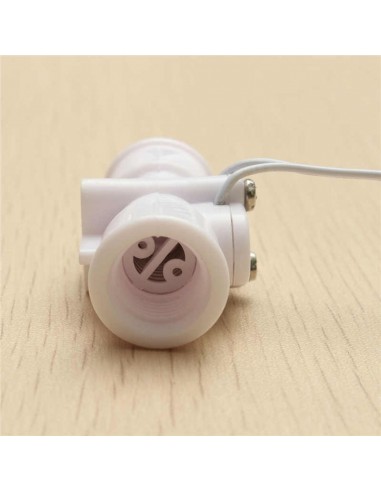

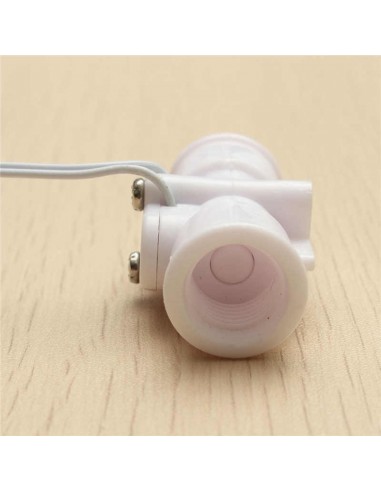

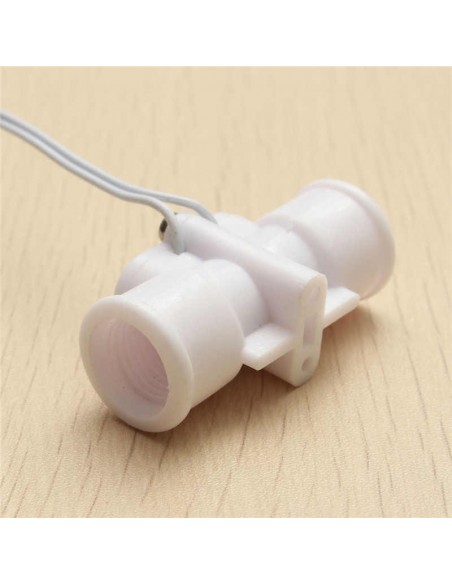

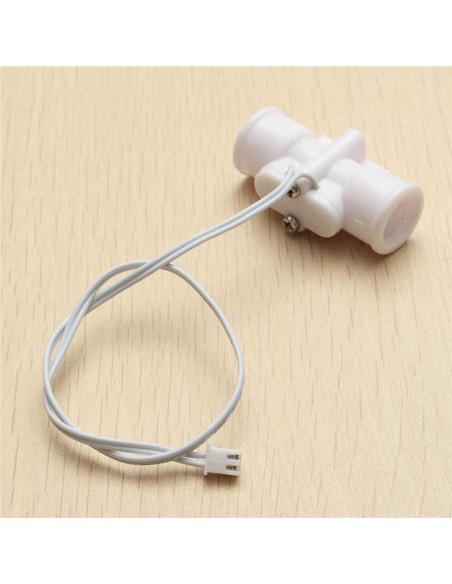

Water flow control 0.2 ~ 3L / min

Specification

• Model: LP-06-DN10
• Mounting thread: internal thread G1 / 4 "outlet, internal thread G1 / 4" imports
• Housing material: plastic PP
• Working pressure: ≤1.0Mpa
• Operating temperature range: 0 ~ 85 degree
• Liquid medium: clean water or liquids
• Contact form: Normally open
• Load Current: 1.5A
• Switching current: 0.5A / 0.7A
• Switching voltage: 100VDC / 220VDC
• Power: 10W / 50W

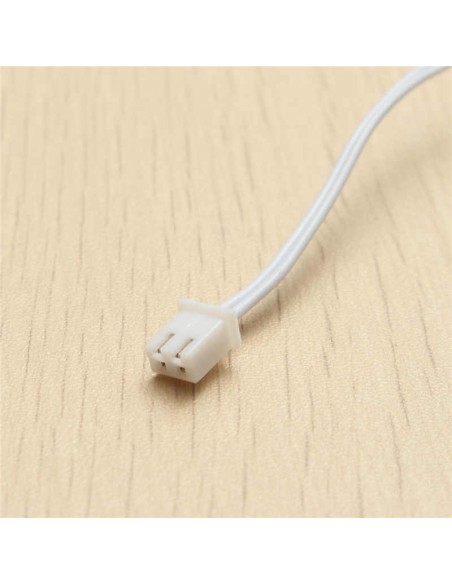

• Wire: AWG 24, 150MM UL1007, with the XH-2.54-2P terminal
• Flow range: 0.2 ~ 3L / min
• Setting Flow Accuracy: ± 10%
• Mounting direction (vertical or horizontal): See shell fluid flow symbol
• Wire color: yellow (according to customer requirements)
• Vibration: 35 ~ 500Hz
• Durability: more than 1000,000 times

Description
LP-06-DN10 Series through flow switch, looks compact, low-flow starts, a water purifier, water dispenser flow protection kit, cheap.
Internal threaded inlet end of G1 / 4 "internal thread, outlet end of G1 / 4", the other can use to speed up the joints, easy to use, quick installation. While providing water purification water level float switch, single or multi-point control.
