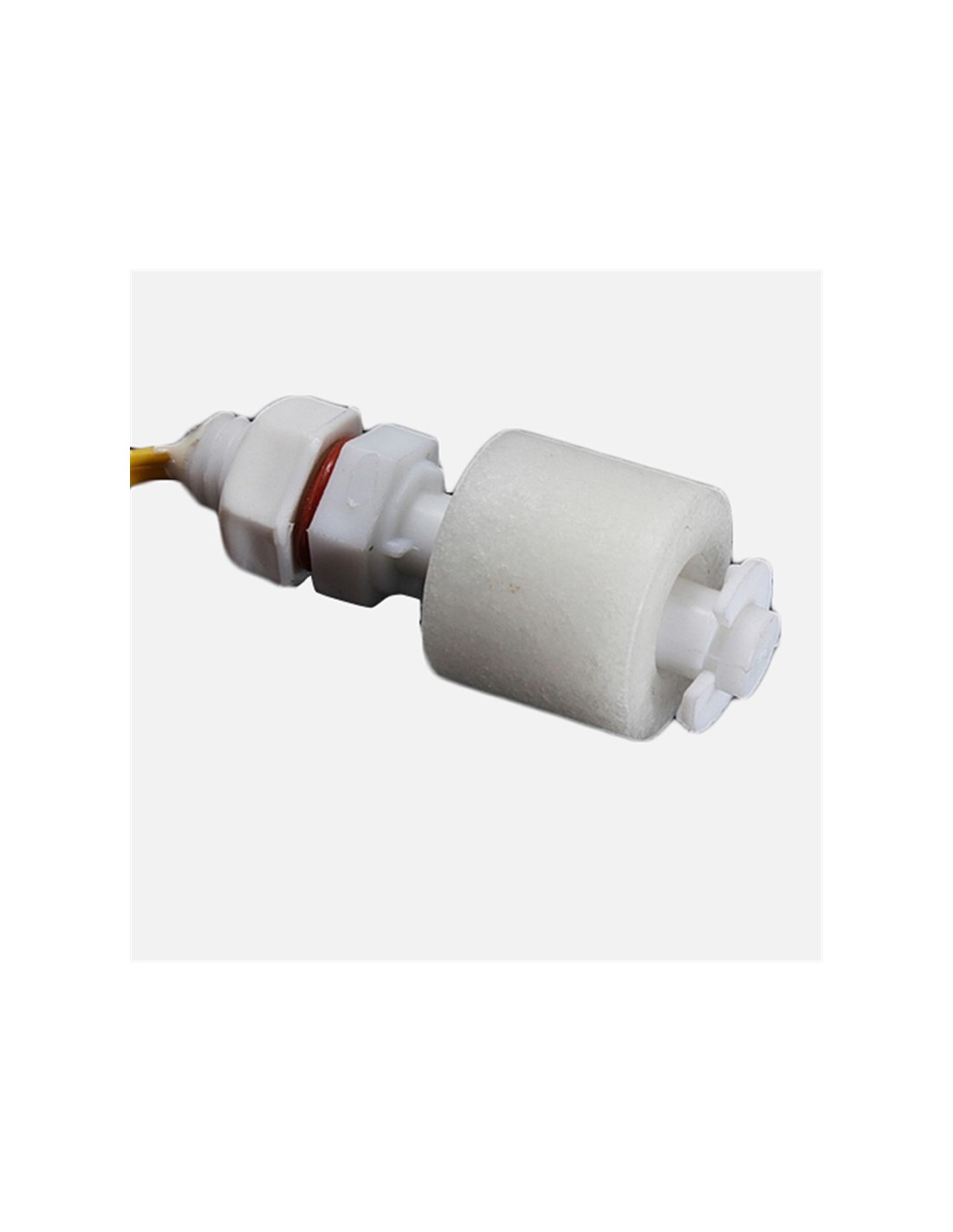

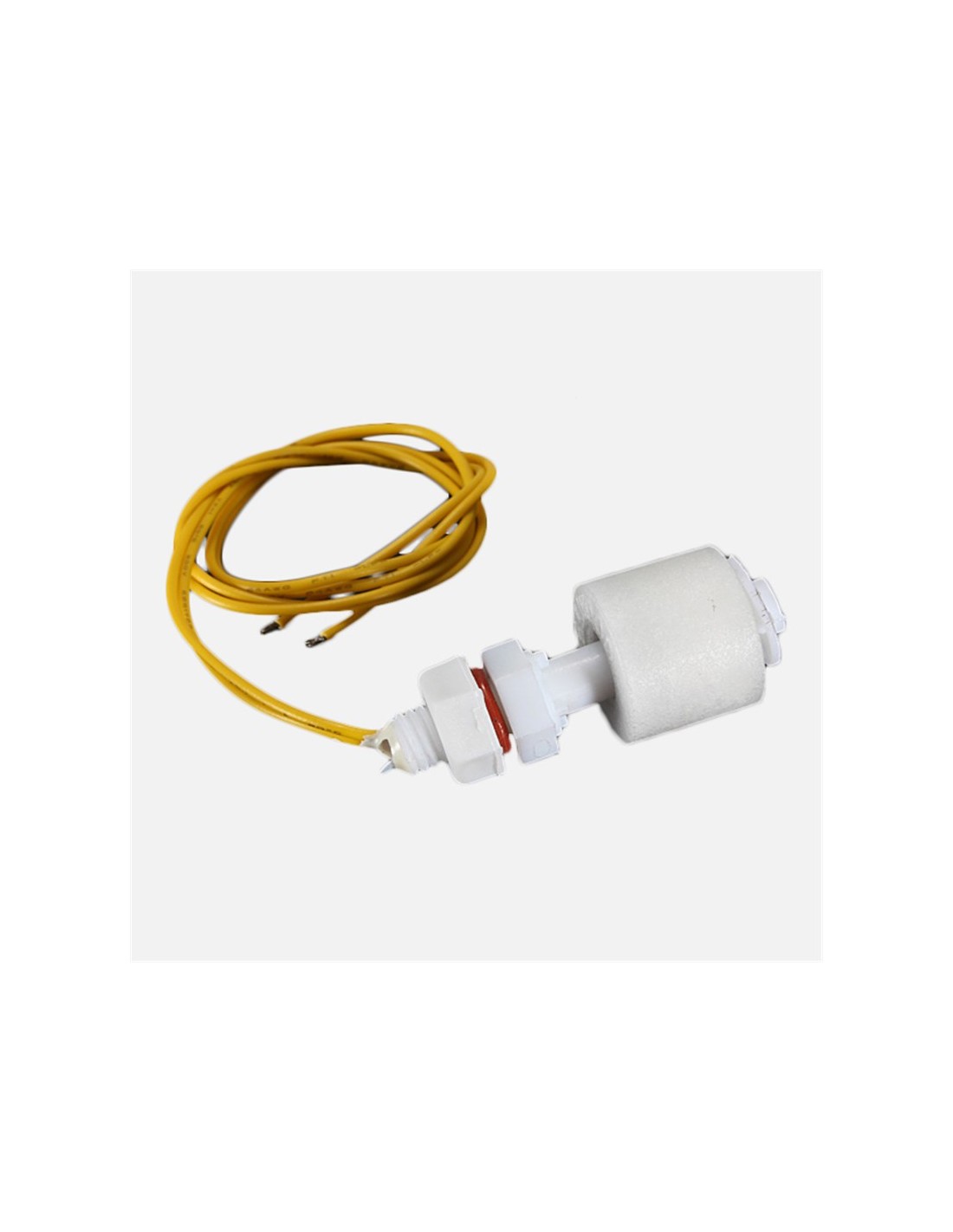

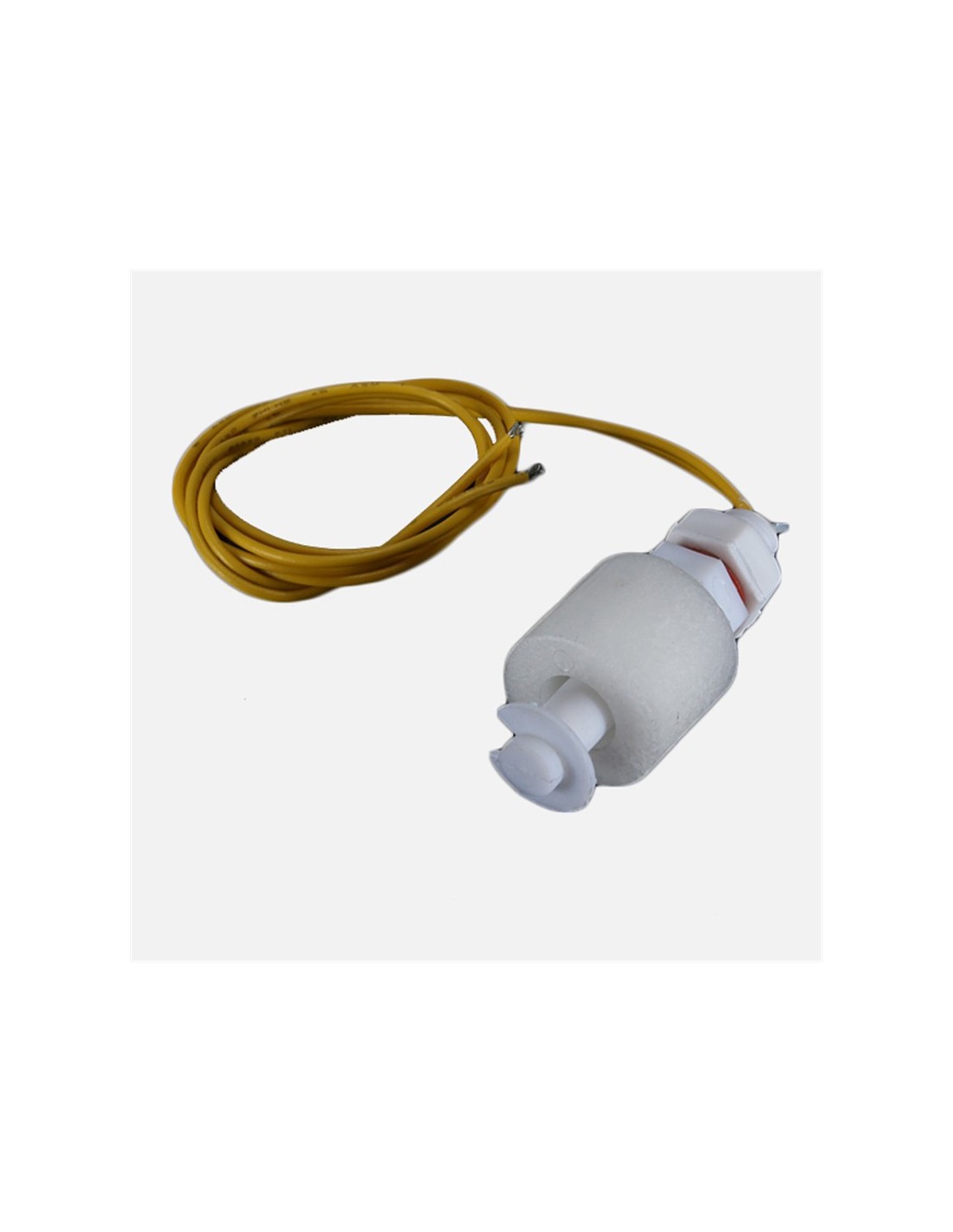

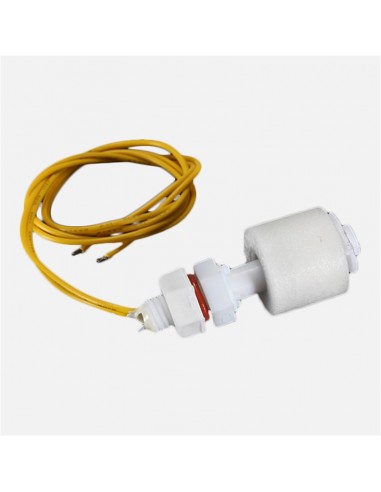

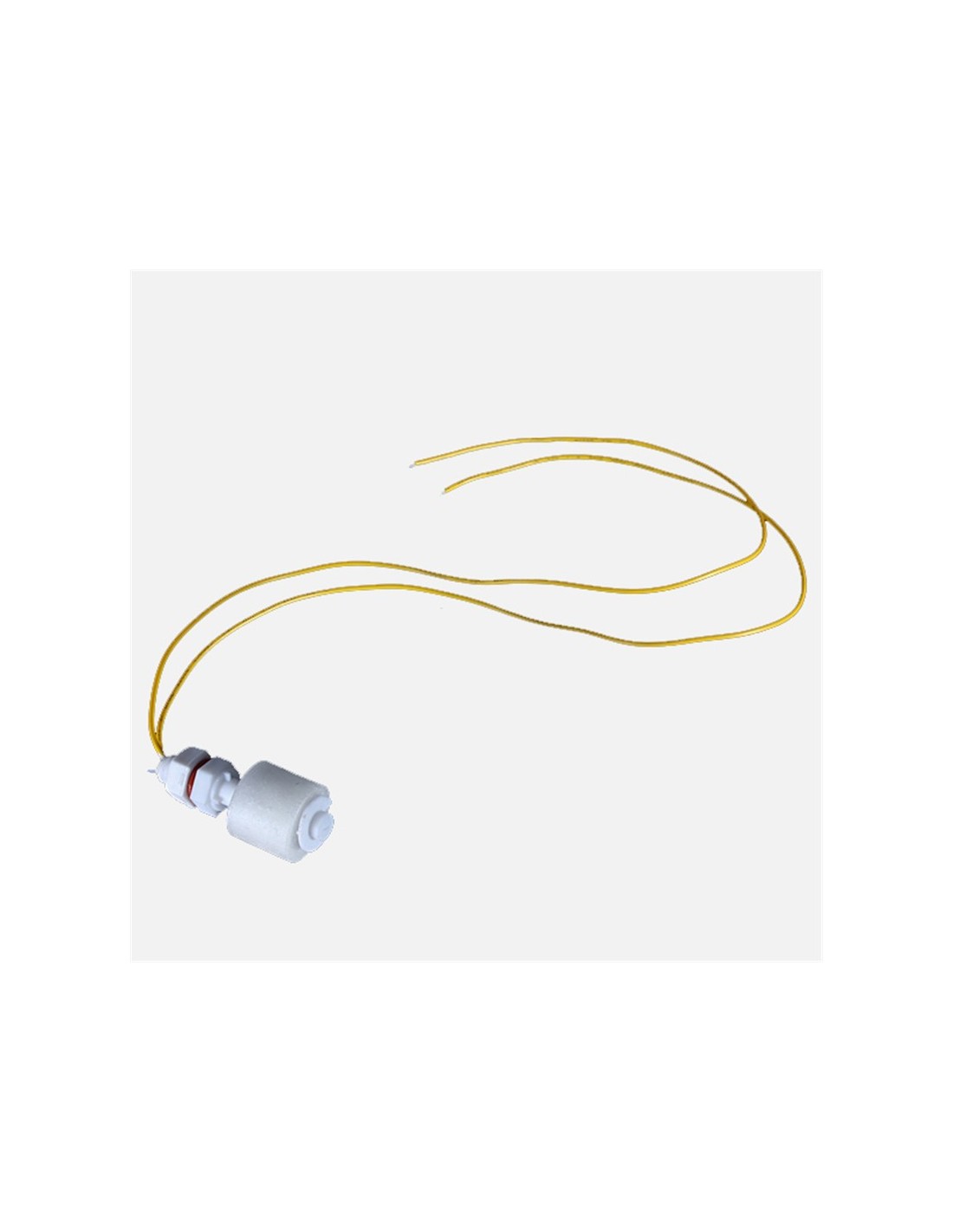

Water Level Sensor Horizontal Float Switch
Ūdens līmeņa sensors (peldoša, horizontāls)
Introduction :
A compact vertically mounted float switch which can be mounted at either the top or bottom of a tank (by the supplied 'O' ring and nut) to either rise and fall for actuation (by an internal magnet) of a sealed reed relay. The sensor is supplied pre-wired with flying output leads.
Float switch is a device used to sense the level of liquid within a tank, it may actuate a pump, an indicator, an alarm, or other device.
Description :
Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration,
heating, or what ever your project may be Contain no for mercury Down float switch
Specification :
- Cable Length: 36cm
- Maximum Load: 50 W
- Max Switching Voltage: 100V DC
- Minimum Voltage: 250V DC
- Maximum Switching Current: 0.5 A
- Max Load Current: 1.0 A
- Max Contact Resistance: 0.4 & for Omega
- Temp Rating: -20~+80℃
- Net Weight: 12g
- Material: PP
