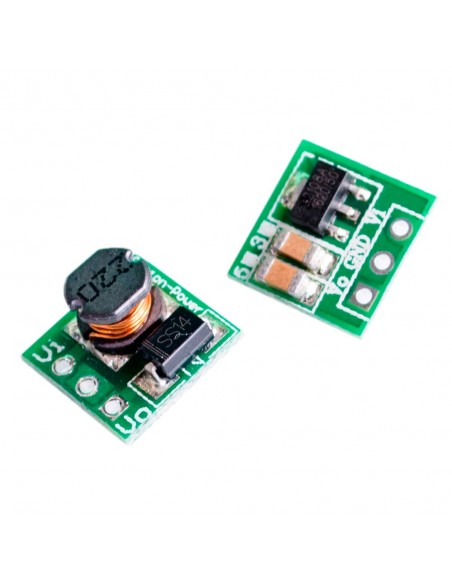

DC-DC 0.9-5V to DC 5V Step-UP Boost Voltage Converter Modul
Sprieguma pārveidotājs (0.9-5V to DC 5V) (bez kājām)
Description:

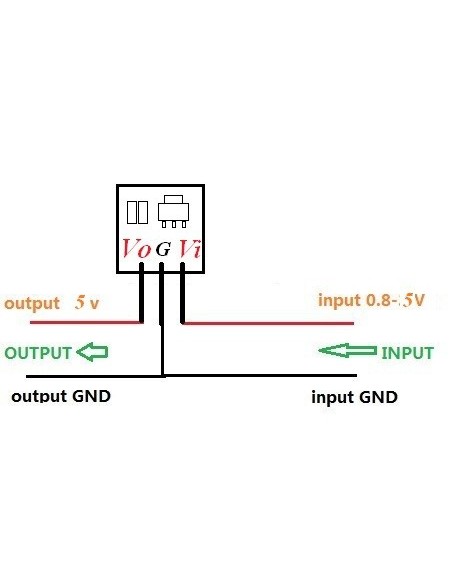

Input voltage 0.9 ~ 5V, output 5V
Maximum output current: 500 MA,
Start Voltage 0.9V, Output Current 10MA
INPUT 1-1.5V, OUTPUT 5V 50-110MA;
INPUT 1.5-2V, OUTPUT 5V 110-160MA;
INPUT 2-3V, OUTPUT 5V 160-400MA;
INPUT above 3V, OUTPUT 5V 400-500MA;
DC-DC Boost module working frequency 150KHZ. efficiency is normal 85% .
2.54mm pin pitch, Arduiuo Breadboard friendly.
Operating ambient temperature : -25~+85 Degrees Celsius
Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small)
Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small)
Weight : about 1.2g( Very light)
Applications:
- Battery powered equipment
- Wireless Module,NRF24L01 CC1101 CC2500 etc.
- Development Board,FPGA/CPLD STM32
- Ardiuno_uno mega2560 Breadboard Raspberry Pi
- 5V LED Lighting
- 5V Low-power motor drive
- Wireless communication equipment
- banana pi
- Audio equipment
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
