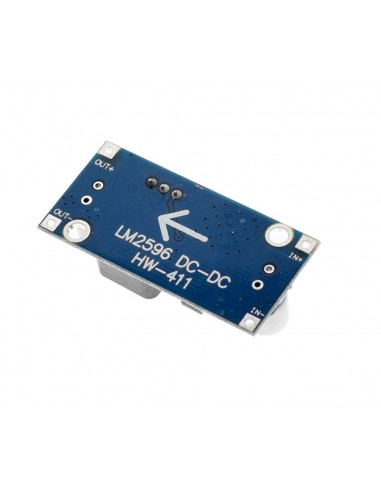

LM2596 DC-DC 28V 3A
Sprieguma pārveidotājs (pazeminošs)
- Name : LM2596 DC-DC Buck module
- Input voltage :4V ~ 35V
- The output voltage : 1.23V ~ 30V
- Output Current :3A( Max)
- Conversion efficiency:92%( MAX )
- Output ripple: <30mV
- Switching frequency: 150KHz
- Working temperature: -forty Five~ +85
- Size :43mm * 21mm * 14mm(Long*Width*Hight)
Features:
2. The range of output voltage: 1.25 V dc to 35 V voltage adjustable, high efficiency (92%) largest maximum output current is 3A.
Instructions:
1. Power (3-40V), power indicator light, the module is working properly.
2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.
Note: Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.
