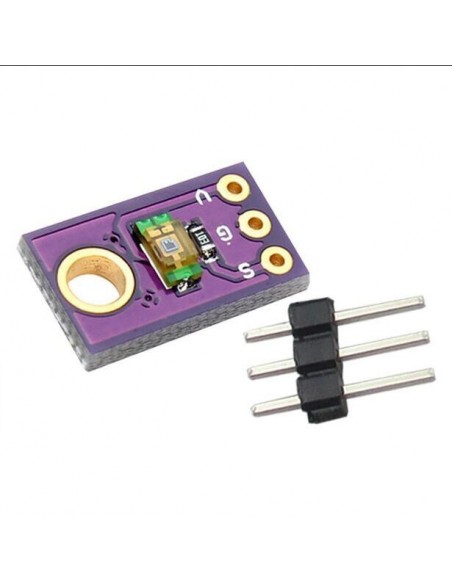

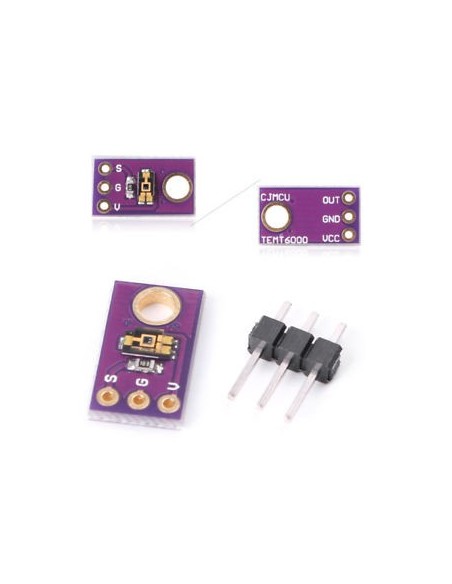

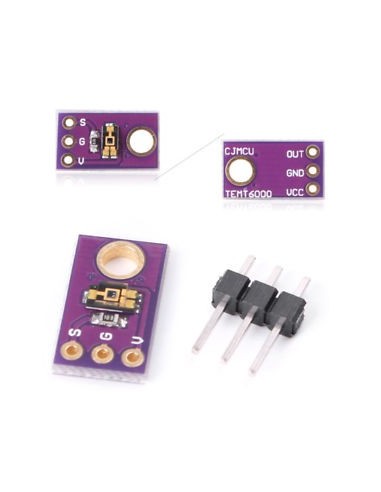

TEMT6000 Light Sensor
TEMT6000 Light Sensor
TEMT6000 Light Sensor
TEMT6000 Light Sensor
TEMT6000 Light Sensor
TEMT6000 Light Sensor

TEMT6000 Light Sensor

Light sensor

00844
1 Item
€2.20



The light sensor TEMT6000 is designed to measure the illumination with sensitivity and spectrum, as close as possible to the characteristics of the human eye. The TEMT6000 sensor is, to date, the best in terms of performance and price. The sensor output is analog and is connected to the analog input of the controller.

Characteristics:

  • Sensor type: phototransistor TEMT6000
  • Power supply: 5V
  • Maximum wavelength of sensitivity: 570 nm
  • Range of spectral sensitivity: 360nm - 970nm
  • Maximum collector current: 20mA
  • Maximum collector-emitter voltage: 6V
  • Collector current in the darkened state: from 3 to 50nA
  • Collector current at illumination:
    • 20lx - 10μA
    • 100lx - 50mA
  • Board dimensions: 14x7 mm
